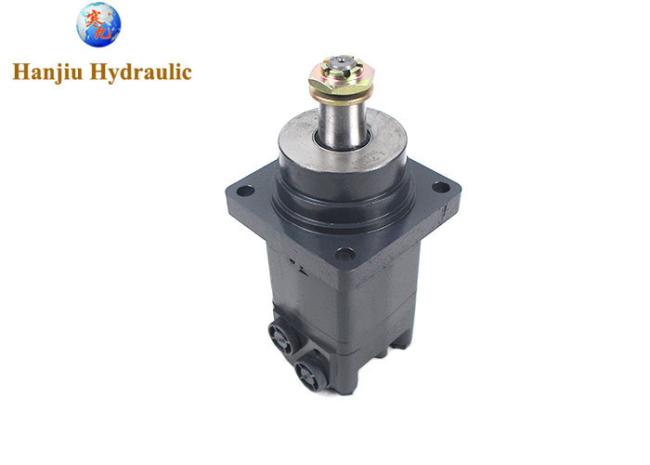

Hydraulic Orbit Motor BMM & BMSY series low speed high torque motor for slow blower

Price Negotiable

Price: Negotiable

MOQ: 50 Pieces

Delivery Time: 10 - 15 work days

Brand: HANJIU

Product Description

Hydraulic Orbit Motor BMM & BMSY series low speed high torque motor for slow blower

Product Details:

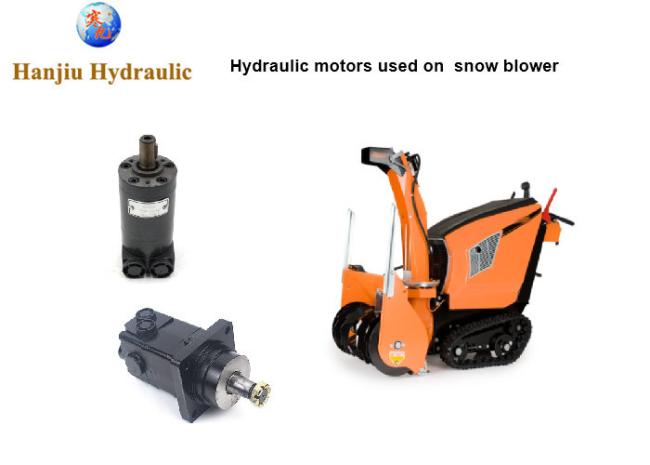

HANJIU Hydraulic motors, BMM series motors and BMSY series motors, widely used on

the slow blower. that will bring new performance of your equipment, and cut your costs down

Main Specifications:

type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4

Type		Max.inlet pressure
BMM8-50	Cont.	17.5
(Mpa)	Int.	22.5

Type	BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm³/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	800	748	600	470	375	300	240	200
Max. torque (N*m)	190	240	310	316	400	450	560	536
Max. output (kW)	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. pressure drop (MPa)	17.5	17.5	17.5	15	14	12.5	12	10
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

If you are looking for high quality and high performance orbital motor, HANJIU is undoubtedly your best choice. With professional technology, high quality products and perfect service, we will provide strong power for your equipment and help you stand out in the industry.
