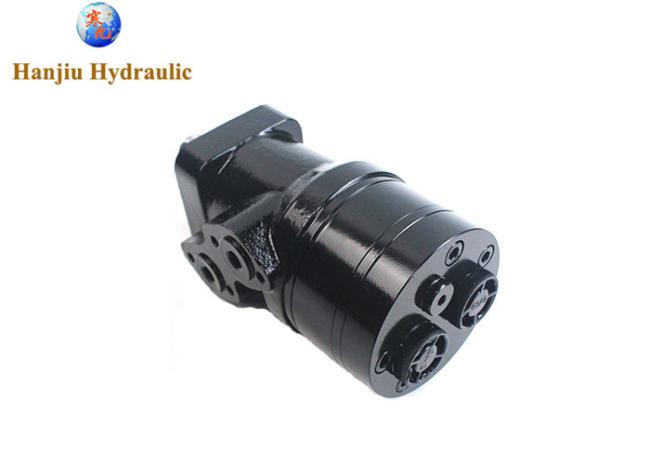

Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Rear ports, MRQE 160 - Hydraulic motor
Price:
Negotiable
MOQ:
50 units
Delivery Time:
10-15 working days
Brand:
Hanjiu
Product Description
Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Side ports,MRQE 160 - Hydraulic motor
Product details:
type code MRQE160--BMR-160-H5-A-S 1DL-N1-H
displacement:160cc
flange:4-M10 Square-flange,pilot Ø44.4×2.8
shaft:Shaft Ø25,parallel Key 8x7x32
ports size:rear ports G1/2 OR 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
Main technical data
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 |
|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
| Max Speed (rpm) cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| Max Torque (N*m) cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
| MR HYDRAULIC MOTOR | BMR Hydraulic Motors |
| MR HYDRAULIC MOTOR | Shaft Ø25 - Standard straight shaft with keyway - SAE-A 2 bolt flange |
| MR HYDRAULIC MOTOR | Shaft Ø32 - Standard straight shaft with keyway - SAE-A 2 bolt flange |
| MR HYDRAULIC MOTOR | Shaft Ø25 with 6 spline - 2 bolt flange SAE-A |
| MR HYDRAULIC MOTOR | Shaft Ø25 - 14-DP12/24 spline - 2 hole flange SAE-A |
| MRQ HYDRAULIC MOTOR | Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Side ports |
| MRQE HYDRAULIC MOTOR | Shaft Ø25 - Standard straight shaft with keyway - 4 bolt flange - Rear ports |
| MR WITH BRAKE | Shaft Ø25 - Standard straight shaft with keyway - SAE-A 2 bolt flange |
APPLICATION
Conveyors
Metal working machines
Road building machines
Mining machinery
Food industries
Agricultural machines
Special vehicles etc
DISTRIBUTOR VALVE
BMR series motors have disk valve: the distributor valve has been separated from output shaft and is driven by short cardan shaft. A balance plate counterbalances the hydraulic forces around the distributor valve. It gives the motors high efficiency- even at high pressures, and good starting characteristics.
