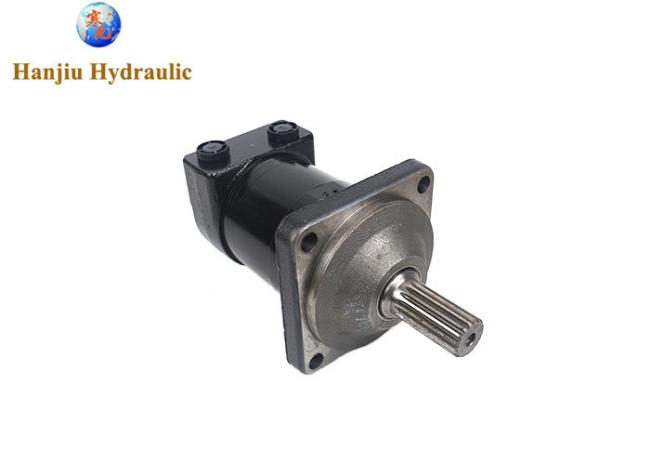

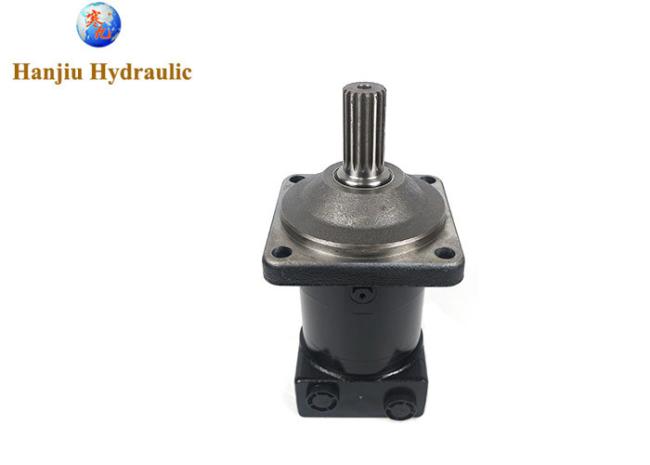

Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft
Price:
Contact the selle to get the best offer
MOQ:
100 pcs
Delivery Time:
0 - 35 work days
Brand:
HANJIU CHINA
Product Description
Orbital motor TMT 500-151Z3024,displacement 500cc,17teeth splined shaft
This series is the HMT series hydraulic motor,matching TMT Series motors
Model: HMT-500-4-FD-D,replaced 151z3024
Displacement: 500ml/r
Flange: 4-Bolt flange-spigot diameter Ø160 mm - BC Ø200 mm
Shaft:Pitch 12/24, Teeth 17, Major diameter 1.50 inch, Pressure angle 30˚
Rotation :Standard
Color:Black
Port size:G3/4
Maximum speed:250-300RPM
Maximum torque:1770-2240N.m
Maximum output:35-42kw
Type code
| Code numbers | |||||||||
| TMT 250 | 151Z3010 | 151Z3016 | 151Z3060 | 151Z3020 | 151Z3026 | 151Z3070 | 151Z3030 | 151Z3036 | 151Z3080 |
| TMT 315 | 151Z3011 | 151Z3017 | 151Z3061 | 151Z3021 | 151Z3027 | 151Z3071 | 151Z3031 | 151Z3037 | 151Z3081 |
| TMT 400 | 151Z3012 | 151Z3018 | 151Z3062 | 151Z3022 | 151Z3028 | 151Z3072 | 151Z3032 | 151Z3038 | 151Z3082 |
| TMT 470 | 151Z3013 | - | 151Z3063 | 151Z3023 | - | 151Z3073 | 151Z3033 | - | 151Z3083 |
| TMT 500 | 151Z3014 | - | 151Z3064 | 151Z3024 | - | 151Z3074 | 151Z3034 | - | 151Z3084 |
| TMT 630 | 151Z3015 | - | 151Z3065 | 151Z3025 | - | 151Z3075 | 151Z3035 | - | 151Z3085 |
Application:

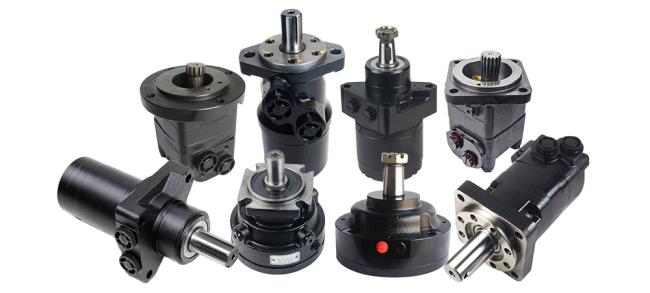

Similar Products
