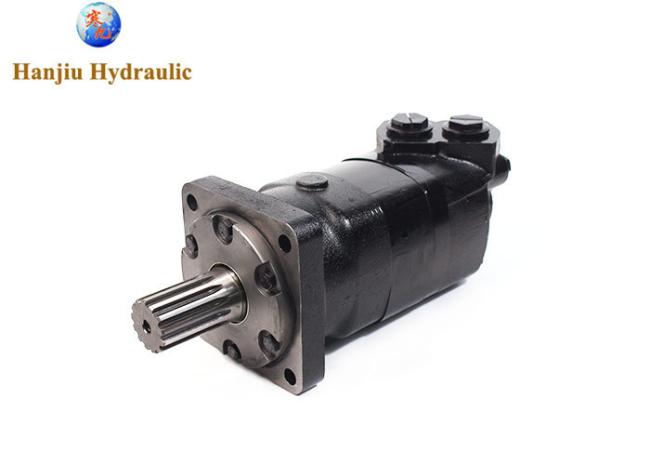

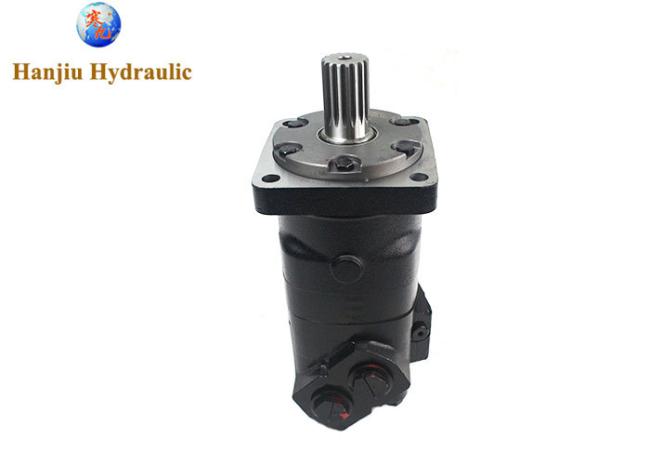

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig
hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig
Model number: BMK6-400-CC-FE-SF5-B
Replace Char-lynn motor 6000 Series,6K-390
Displacement: 400CC
Flange: 4-Φ14.2 Wheel-flange Φ184.12,Pilot 139.7
Shaft: ShaftΦ38.1,splined tooth17-DP12/24
Port:1-5/16-12UNF
Drain port: 7/16-20 UNF
Paint: Black
Main Specification
| Type |
|
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) |
cont. |
765 |
610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M |
cont. |
565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
Hanjiu Company, as a reputable orbital motor supplier, has established a strong foothold in the competitive market through its extensive production experience, professional R&D team, and robust production capabilities. Additionally, its flexible pricing strategies, customer-friendly price advantages, and consistent quality assurance have made it a trusted choice for many clients.
Choose Hanjiu, choose peace of mind and affordability. We will work with you to create a bright future with our professional technology, high-quality products, and attentive service.
