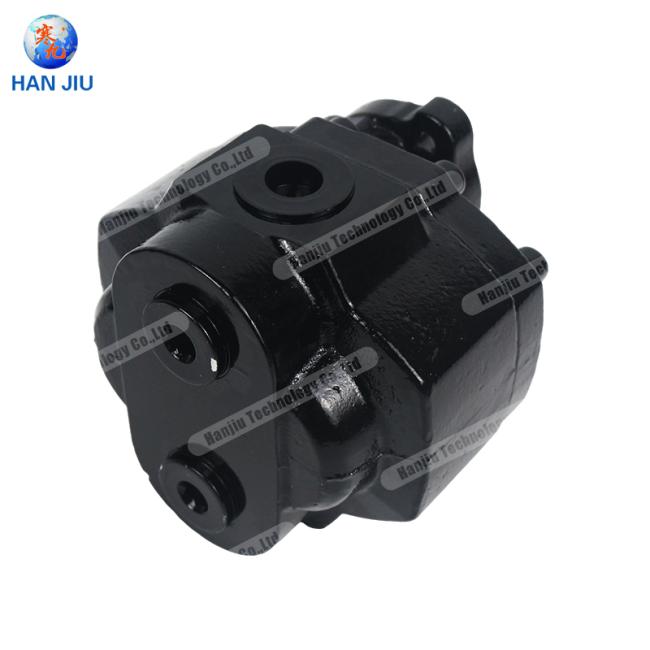

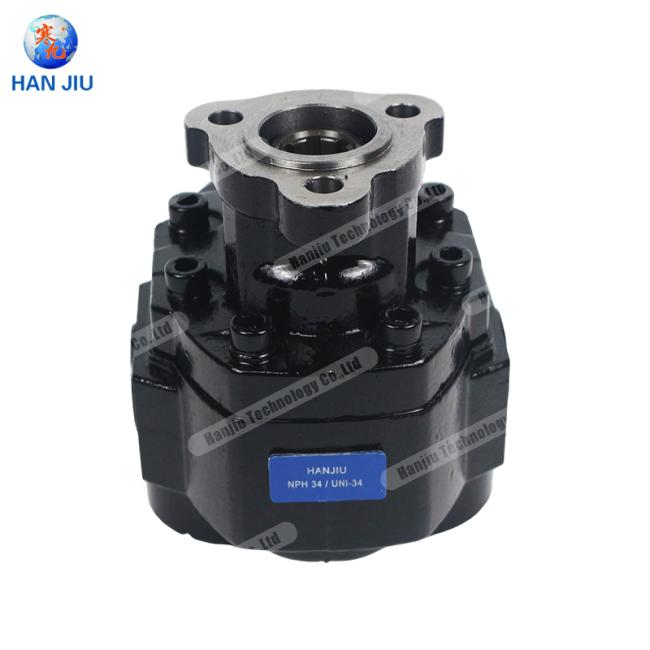

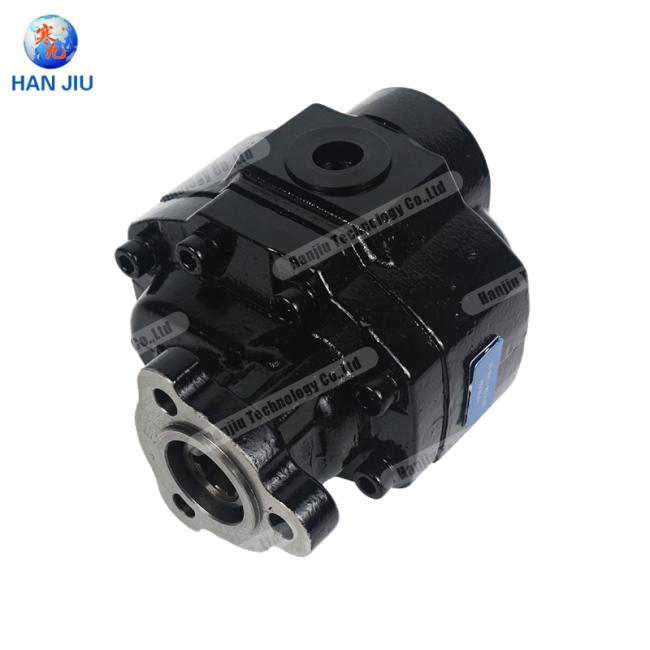

OMFB Hydrraulic Gear Pump NPH UNI 34 D replacement 10501100344, cast-iron pumps for medium-heavy duty

DESCRIPTION
TYPE OF PUMP:NPH- 34
DISPLACEMENT CC:33,88
ROTATION:Right

Product description:
High-performance OMFB NPH-34 hydraulic gear pump replacement.
Right rotation design with a 3-bolt UNI flange and G 3/4” threaded ports.
An excellent choice for industrial, agricultural and truck hydraulic systems.

Main features:

Type: NPH-34
Rotation: Right
Inlet port (IN): G 3/4”
Outlet port (OUT): G 3/4”
Displacement: 33.88 cm³/rev
Max. working pressure: 280 bar
Peak pressure: 310 bar
Maximum speed: 2800 rpm
Minimum speed: 300 rpm
Shaft type: 6×21×25 (ISO 14)
Mounting: 3-bolt, Ø12 mm
Housing material: cast iron
Weight: 10.5kg

CODE
10501100344
Standard

FAMILY DESCRIPTION
Autocompensated one-way cast-iron pumps for medium-heavy duty, displacements from 17 to 125 cc- 3 hole Flanging UNI 21x25- Side intake, side and rear delivery OPTIONAL: bronze thrust plate. This is crucial in mobile machinery.
