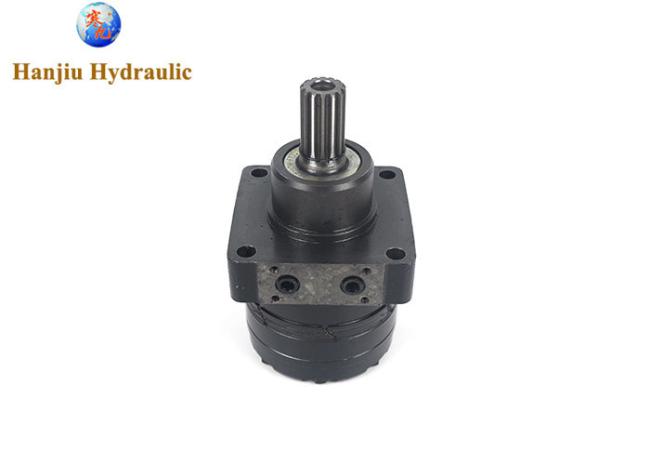

Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Price:
160 usd/pc
MOQ:
10 Pieces
Delivery Time:
35 - 45 work days
Brand:
HANJIU
Product Description
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size
used on excavator grab attachment
Product details
| Product | Low Speed High Torque Hydraulic Motor |
| Model No. | BMER-2-250-WH-FD1-R-FY |
| Size | 250ml/r |
| Flange | wheel flange |
| Shaft | spline shaft |
| Rotation | CCW |
| Port |
Manifold mount 4×5/8-18
|
| Material | Cast iron |
Technical Specifications
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| Max. speed (rpm) int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) cont. | 325 | eca450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| Max. torque (N•m) int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| Max. torque (N•m) peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| Max. output (kW) int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 10.0 | |
| Max. pressure drop (MPa) cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| Max. pressure drop (MPa) int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| Max. pressure drop (MPa) peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| Max. flow (L/min) int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
Typical Applications
Medium-duty wheel drives, grapple heads, feed rollers, and broom drives.
Hanjiu technology is specialized in producing the hydraulic orbit motors, we have the most completely range of models, from BMM --The small hydraulic motors, to BMP/BMPH,BMR/BMRS/BMH--the middle hydraulic motors, and heavy motors, like BMSY/BMT/BMV, we also developed new models, like charlynn 10000 series motors, TMT series motors
At Hanjiu, we uphold the highest international quality standards through skilled, certified professionals and streamlined facilities. Our high quality inspection process ensures precision and yield.
