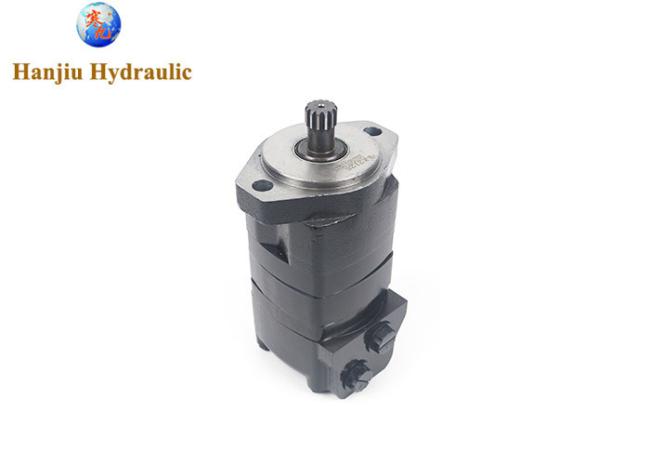

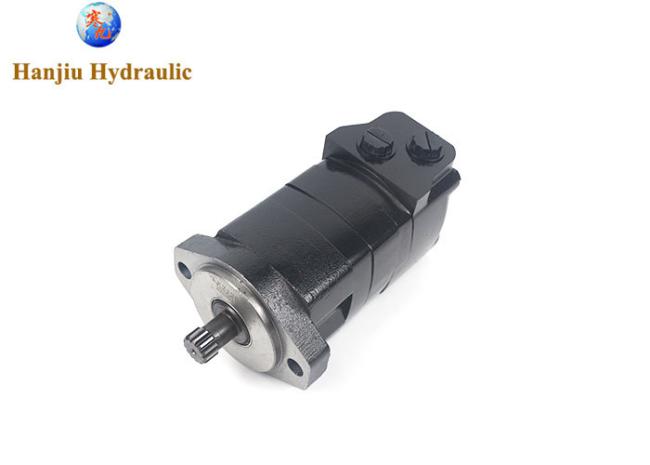

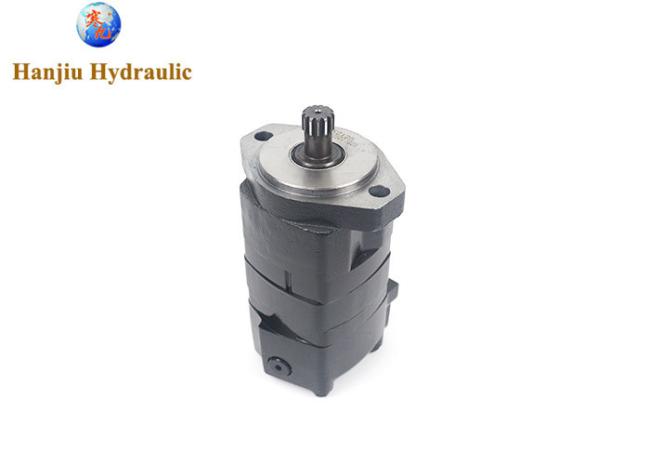

Char-Lynn 104-1958-006 2K Low-Speed Gerotor/Geroler, 2 bolts flange with 13 teeth shaft

Price Negotiable

Price: 90 USD

MOQ: 100 Pieces

Delivery Time: 35 - 45 work days

Brand: HANJIU

Product Description

Char-Lynn 104-1958-006 2K Low-Speed Gerotor/Geroler, 2 bolts flange with 13 teeth shaft

Quick review:

Model No.: BMK2-125-E2-I-SU

matching type :

MOTOR 2K M0208AC07AA010000000000F

104-1958-006

displacement	125ml/r
speed	576-720 rpm
torque	455-570nm
mounting	2 Bolt SAE A Flange
shaft	Splined 13-DP16/32 shaft

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

Application:

Swing motor, Brush Cutters & mowers, Harvesting equipment

About Hanjiu quality:

100% factory testing and inspection personnel in accordance with international standards for the high-frequency sampling,to ensure the quality of products manufactured
