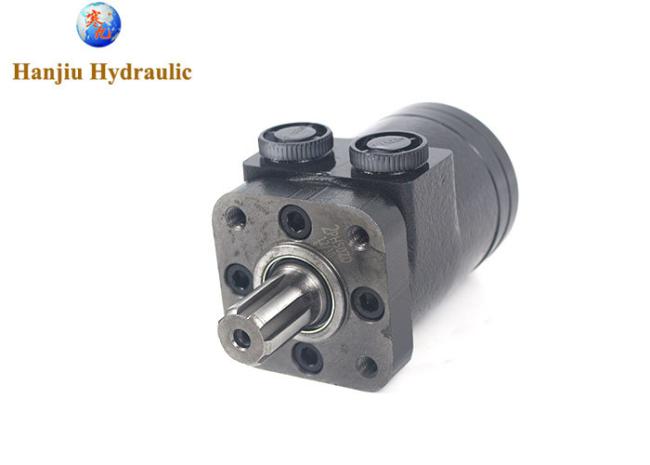

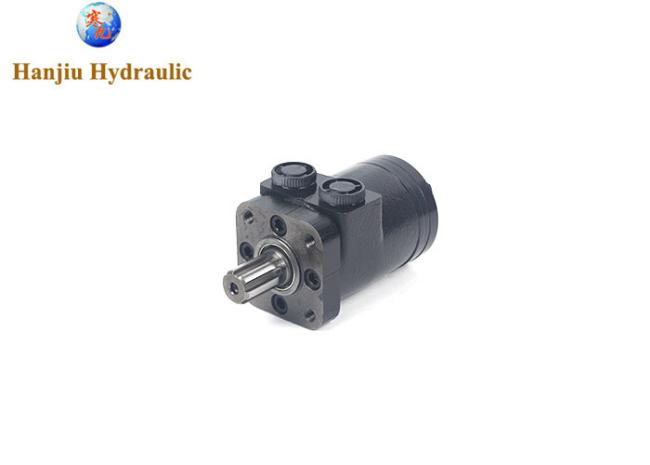

LSHT Hydraulic Motor - 50cc - SAE A 4-bolt - SAEA 6B Shaft with 7/8-14 port size
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description
LSHT Hydraulic Motor - 50cc - SAE A 4-bolt - SAEA 6B Shaft with 7/8-14 port size
► Product details
model type:BMPH-50-H5-S-S
displacement:50cc
flange:4 Bolt Std: 44.4 [1.75] Dia. X 3.0 [.12] Pilot, .375-16 Mounting
shaft: Shaft Ø25.4 , splined tooth SEA 6B
port threads:7/8-14 O-ring ,7/16-20UNF
► Specification
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE
Underpinning this balanced and reliable product line is Hanjiu Technology Co., Ltd.'s persistent and dedicated cultivation in hydraulic transmission. The company consistently positions itself as an application-driven technology provider. Its R&D team engages deeply with frontline operations, listening to authentic feedback from equipment manufacturers and end-users, transforming market insights into the source of product iteration and innovation. From initial design simulations to material science exploration, from precision machining quality control to rigorous factory testing, every step integrates comprehensive considerations of performance, reliability, and cost control. Hanjiu Technology avoids pursuing unrealistic parameter stacking, instead focusing on creating products that deliver outstanding performance under real-world conditions and provide customers with peace of mind. It is precisely this culture of pragmatic innovation that enables products like the BMPH MOTOR to precisely meet market demands and become a cornerstone in its niche segment. As global industrial sectors increasingly demand higher equipment efficiency and reliability, Hanjiu Technology will continue leveraging its solid technical foundation and deep market insights to deliver more “just-right” power solutions like the BMPH-50, jointly driving industrial progress and development.
