MR 400 CB hydraulic motor 32 mm shaft with keyway compatible BMR-400-4-B-D
Price:
Negotiable
MOQ:
50 units
Delivery Time:
10-15 working days
Brand:
Hanjiu
Product Description

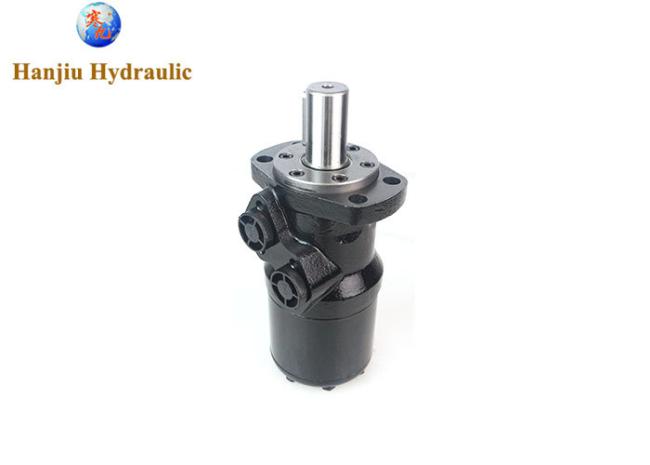

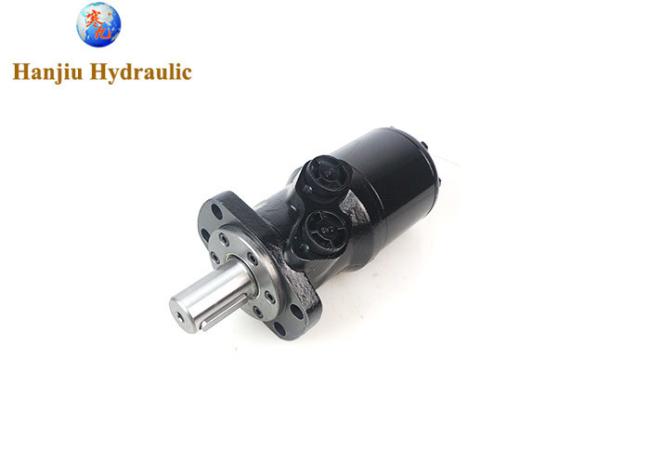

MR 400 CB hydraulic motor 32 mm shaft with keyway compatible BMR-400-4-B-D
Type Code: BMR-400-4-B-D, matching MRF400CB
Displacement Options: 400CC
Flange: Oval mount, four holes
Shaft: ø32 straight, Parallel key A10x8x45 DIN6885
Port Threads: BSPP PORTS
Technical Data (25mm and 1" Splined/28.56mm Tapered Shaft)
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 |
|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
| Max Speed (rpm) cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| Max Torque (N*m) cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
Technical Data (31.75mm and 32mm Shaft)
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 |
|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
| Max Speed (rpm) cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| Max Torque (N*m) cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
