7P80 1 A1 GKZ1 - MONOBLOCK DIRECTIONAL CONTROL VALVES 80LITERS CONTROL VALVE
Price:
Contact the seller to get a quote
MOQ:
100 Sets
Delivery Time:
25 - 35 work days
Brand:
HANJIU
Product Description

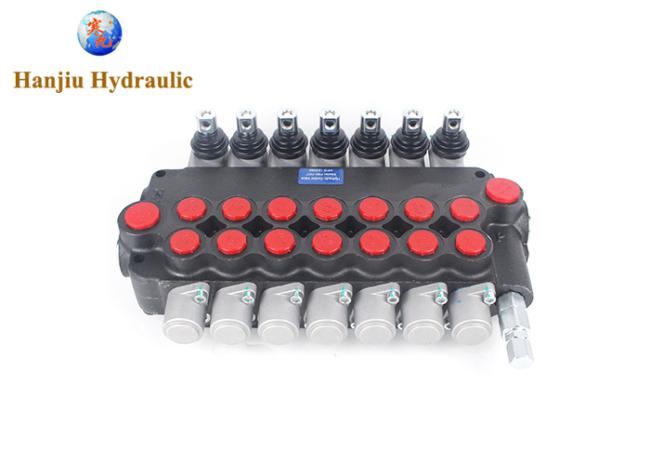

7P80 1 A1 GKZ1 - MONOBLOCK DIRECTIONAL CONTROL VALVES 80LITERS CONTROL VALVE
type code 7P80 1 A1 A1 A1 A1 A1 A1 A1 GKZ1
| flow rate | 80 liters |
| number of spools | 7 manual control |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 250bar |
| inlet port size | G1/2 |
| spool type | 3 positons, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return |
| working section arrangement | standard type |
| work port size | G1/2 |
| outlet section type | top outlet,side |
| outlet port size | G1/2 |
| Monobloc Directional Control Valves | ||||||||
|---|---|---|---|---|---|---|---|---|
| Code | Sections NO. |
Max. Flow (L/min.) |
Port Sizes | Max. Pressure (Bar.) |
Tank Pressure (Bar.) |
|||
| P | A - B | T | N | |||||
| 1P80 1 A1 GKZ1 | 1 | 80 | 1/2” – 1/2” – 3/4" – 3/4" | 250 | 50 | |||
| 2P80 1 A1 A1 GKZ1 | 2 | 80 | 250 | 50 | ||||
| 3P80 1 A1 A1 A1 GKZ1 | 3 | 80 | 250 | 50 | ||||
| 4P80 1 A1 A1 A1 A1 GKZ1 | 4 | 80 | 250 | 50 | ||||
| 5P80 1 A1 A1 A1 A1 A1 GKZ1 | 5 | 80 | 250 | 50 | ||||
| 6P80 1 A1 A1 A1 A1 A1 A1 GKZ1 | 6 | 80 | 250 | 50 | ||||
