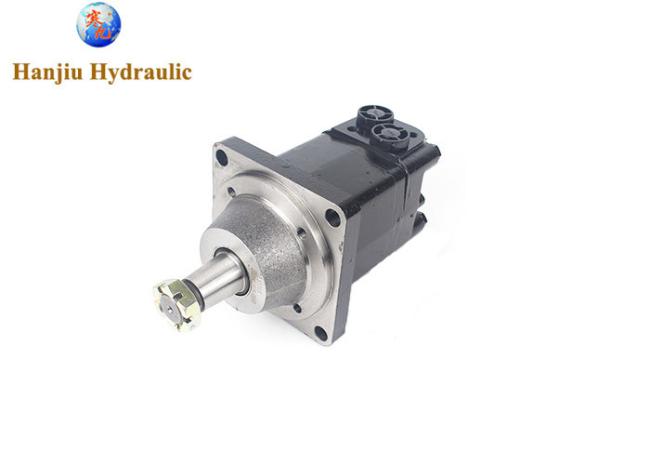

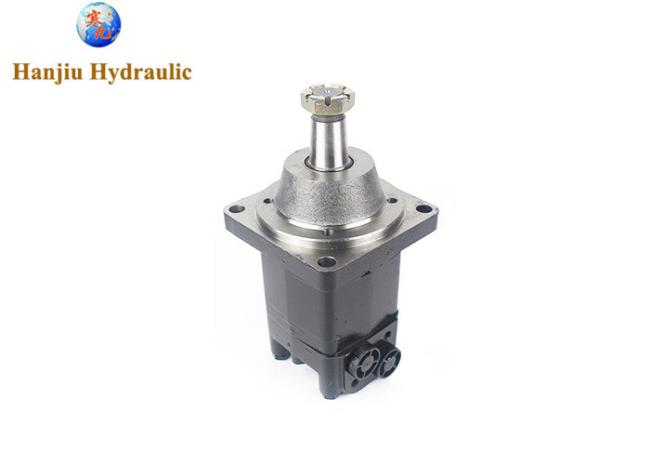

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports
MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports
Product details:
type code BMSY-315-W-T1-D
Displacement:315cc
Flange:
Shaft:
Ports:
BMSY Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
type code for your ref
MS080
MS100
MS125
MS160
MS200
MS315
MS400
MS100K
MS315K
MSS80
MSS250
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
HANJIU Technology is the supplier of low speed / high torque orbital motors. We offer various solutions, applications and types of motors adapted to your requirements. The displacements are variable between 50 cc/rev to 800 cc/rev. The speed range varies from 1380 rpm for the smallest motors to 300 rpm for the bigger types. The maximum operating torques are variable between 9,3daNm and 182daNm.
Our motors are interchangeables with motors supplied by best known manufacturers. We offer the best price/performance ratios on the market and have short delivery supplies from stock.
Orbital Hydraulic Motor line: MM, MP, MR, MS, MT e MV.
