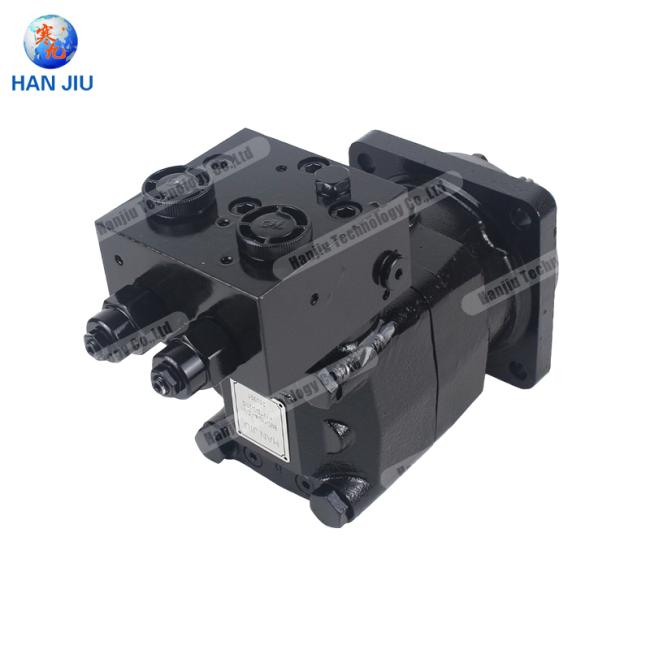

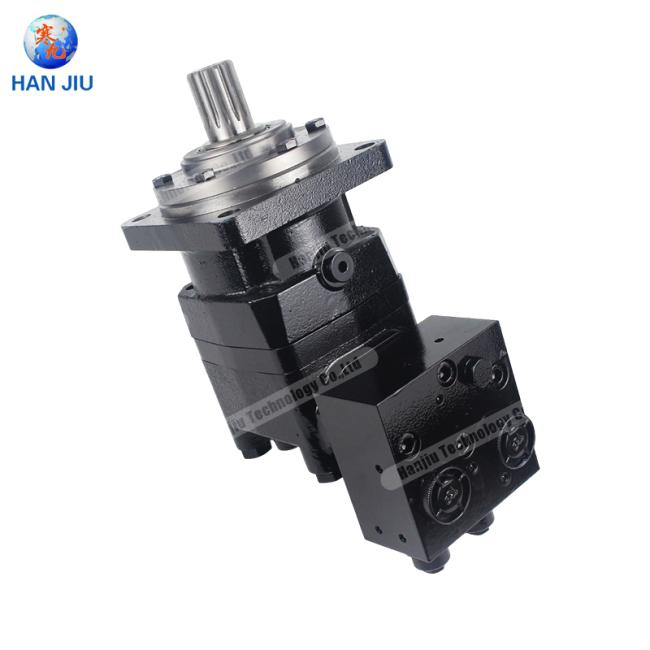

Hydraulic Motor with External Relief Valve, BMT-160-4-FC-M1, 160 ml/r, 4-Hole Mounting Flange, Splined Shaft
Hydraulic Motor with External Relief Valve, BMT-160-4-FC-M1, 160 ml/r, 4-Hole Mounting Flange, Splined Shaft
Quick review:
| Model No. | BMT-160-4-FC-M1+FPTD-3-21-D |
|
Output volume (cc/rev) |
160 cc |
| Shaft | 14T |
| Torque | 470/560 N*M |
Main Specifications:
| Type | BMT 160 |
BMT 200 |
BMT 230 |
BMT 250 |
BMT 315 |
BMT 400 |
BMT 500 |
BMT 630 |
BMT 800 |
|
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
|
Dimentions:
More BMT series hydraulic motor available:
| BMT 160 | BMTE 230 | BMTJ 230 |
| BMT 200 | BMTE 230 | BMTJ 230 |
| BMT 250 | BMTE 250 | BMTJ 250 |
| BMT 315 | BMTE 315 | BMTJ 315 |
| BMT 400 | BMTE 400 | BMTJ 400 |
| BMT 500 | BMTE 500 | BMTJ 500 |
| BMT 630 | BMTE 630 | BMTJ 630 |
| BMT 800 | BMTE 800 |
BMTJ 800 |
Our BMT motor are compatible with these:
OMT 160
OMT 200
OMT 250
OMT 315
OMT 400
OMT 500
OMTW 160
OMTW 200
OMTW 250
OMTW 315
OMTW 400
OMTW 500
