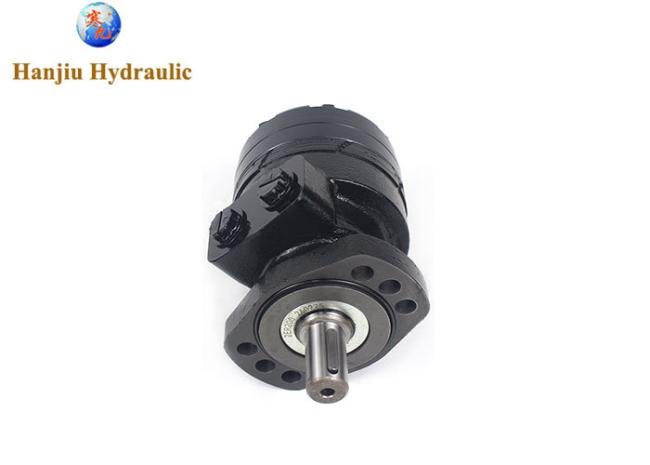

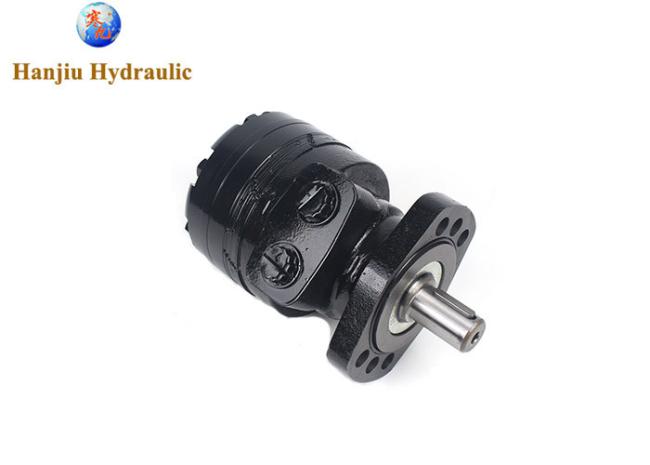

BMER-2-200-FS-RW-S Hydraulic motor low speed high torque 11.96 cubic inch displacement
| Product | Low Speed High Torque Hydraulic Motor |
| Model No. | BMER-2-200-FS-RW-S |
| Displacement | 200ml/r |
| Flange |
Magneto Mount 6-Hole
|
| Shaft |
Cylindrical shaft Ø25.4
Parallel key 6.35x6.35x31.75
|
| Rotation | CCW |
| Port |
7/8-14UNF
|
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| Max. speed (rpm) int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) cont. | 325 | eca450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| Max. torque (N•m) int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| Max. torque (N•m) peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| Max. output (kW) int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 10.0 | |
| Max. pressure drop (MPa) cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| Max. pressure drop (MPa) int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| Max. pressure drop (MPa) peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| Max. flow (L/min) int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
when your hydraulilc motors meet stalling issues, follow this troubleshooting and resolution process:
① Inspect and optimize the hydraulic system
② Perform internal inspection and repair/calibration
③ Precision repair of critical components:
④ Debugging and validation
With over a decade of expertise in hydraulic transmission, Hanjiu has continuously refined the design and manufacturing processes for its orbital hydraulic motors through robust R&D capabilities and a comprehensive production system. We understand that reliable performance stems from meticulous attention to detail. From raw material selection to precision machining, Hanjiu motors adhere to stringent corporate standards, ensuring stable and reliable internal clearance. This approach enhances the product's resistance to stalling at its source.
Furthermore, Hanjiu's global sales network and comprehensive after-sales service system guarantee timely, professional technical support and spare parts supply whenever you encounter technical challenges. This ensures the continuous and stable operation of your equipment.
