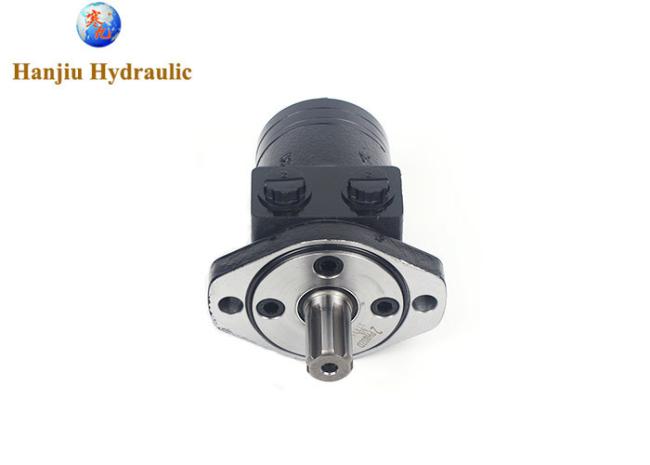

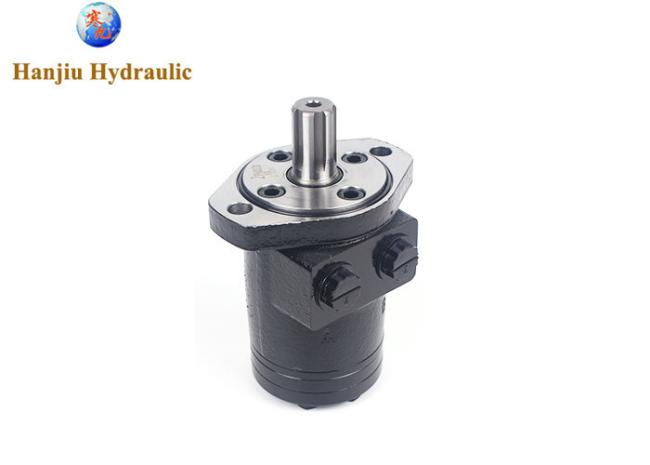

101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description
101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80
► Product details
model type:BMPH-80-H2-S-S=101-1082-009
displacement:80cc
flange:Ø13.5 Rhomb-flange , 2- pilot Ø82.5×2.8
shaft: Shaft Ø25.4 , splined tooth SEA 6B
port threads:7/8-14 O-ring ,7/16-20UNF
► Specification
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE
HANJIU has established a comprehensive quality control system equipped with advanced production and testing equipment. Each BMP/BMPH orbital motor undergoes thorough inspection for internal leakage, back pressure compatibility, and heat dissipation performance to ensure compliance with high-efficiency temperature control standards. HANJIU's BMP/BMPH orbital motors not only deliver core advantages of high efficiency, low consumption, and superior temperature control, but also feature high reliability, exceptional durability, and broad compatibility. They effectively eliminate abnormal heating issues and extend equipment lifespan. We provide customized solutions tailored to different equipment models and operational scenarios, backed by a comprehensive after-sales support and spare parts supply system. This ensures timely technical assistance and maintenance services for our customers. Choosing HANJIU BMP/BMPH Orbital Motors delivers stable, high-efficiency power support while minimizing losses from overheating failures. Visit the HANJIU official website to explore our product offerings.
