China Hydraulic directional control valve 4P80 with 80ml/min 4 handles, electric-pneumatic valve for sale

Hydraulic directional control valve 4P80 with 80ml/min 4 handles, electric-pneumatic valve

Name: Hydraulic directional control valve 4P80 with 80ml/min 4 handles, electric-pneumatic valve
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: Contact the seller to get a quote

MOQ: 100 Sets

Delivery Time: 25 - 35 work days

Brand: HANJIU

Product Description

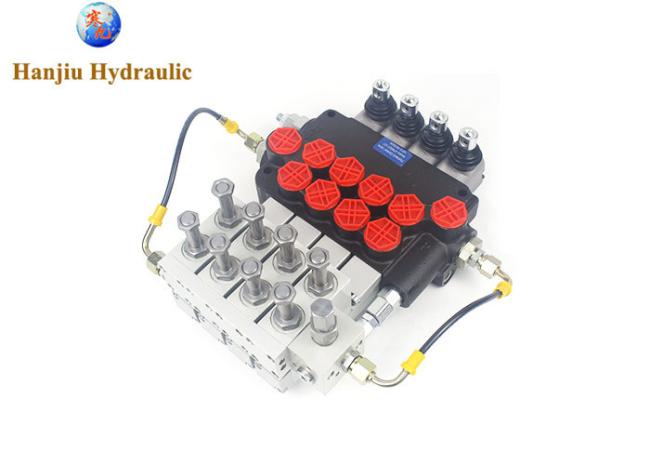

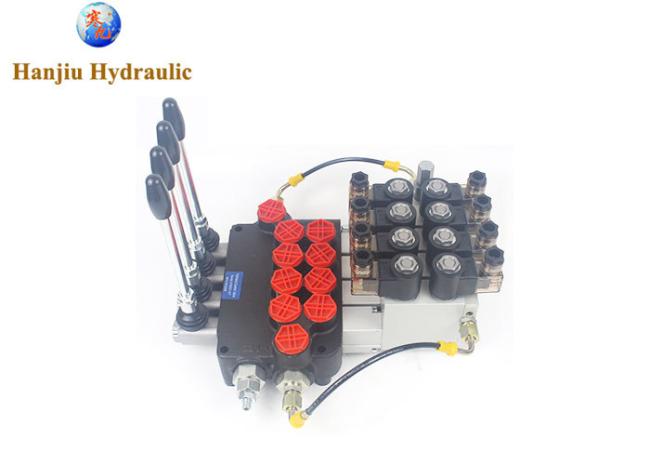

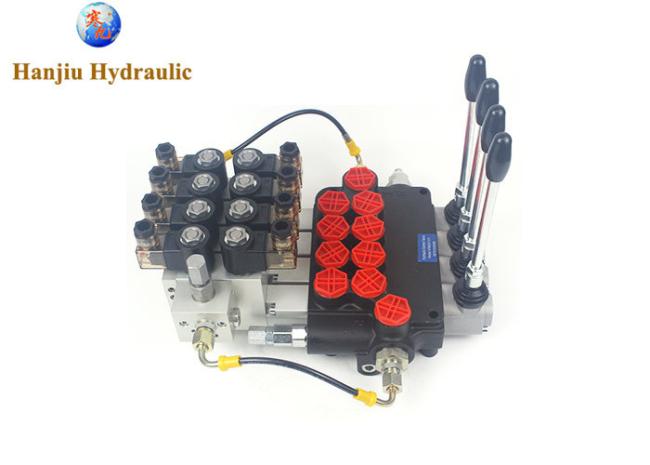

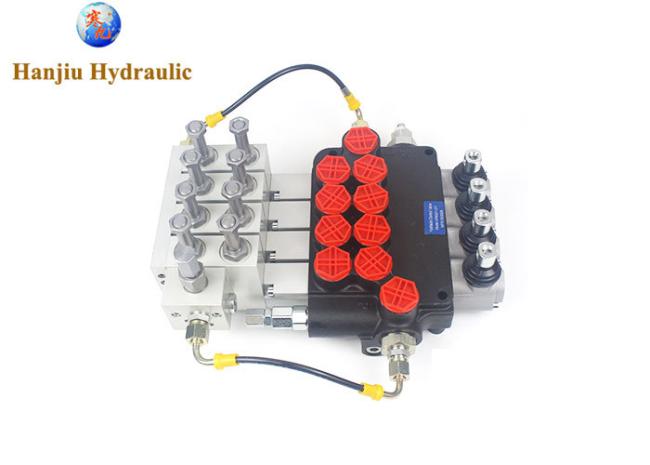

Hydraulic directional control valve 4P80 with 80ml/min 4 handles, electric-pneumatic valve

type code 4P80DY-OT

flow rate	80 liters
number of spools	4 manual control
inlet section valve	side inlet, with relief valve
relief valve set pressure	250bar
inlet port size	G1/2
spool type	3 positons, double acting
handle side arrangement	standard handle
spool cap side arrangement	3position, spring return
working section arrangement	standard type
work port size	G1/2
outlet section type	top outlet,side
outlet port size	G1/2

The advantages
Dilivery time	Quality and after-sales	Customized service	Spool	Body surface	Relief Valve
Fast delivery: 20-25 working days for a single order within 5,000 units	All products are 100% tested and qualified before leaving the factory. The service is timely and the best solution is provided for customers at the first time.	Provide OEM and ODM customization services to meet the needs of customers in different industries.	The valve spool is subjected to high-frequency heat treatment or chrome-plated treatment, and is finely ground by an advanced centerless grinder, so the valve stem has high precision. Valve stem function and control method can be customized.	There are various treatment methods for the surface of the valve body, and the anti-rust performance is excellent.	High-quality overflow valve, good opening and closing performance, stable pressure.
