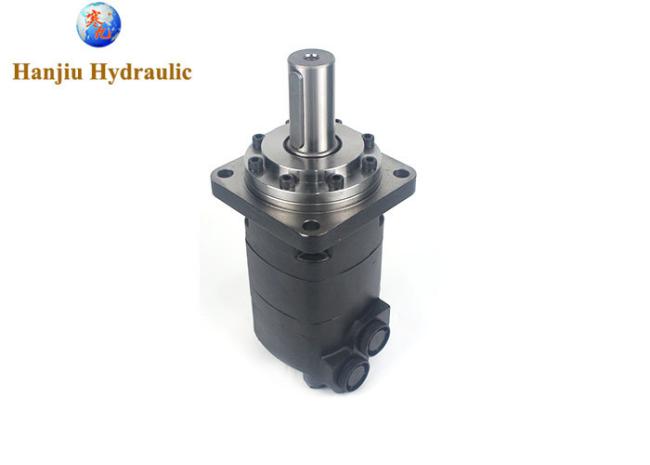

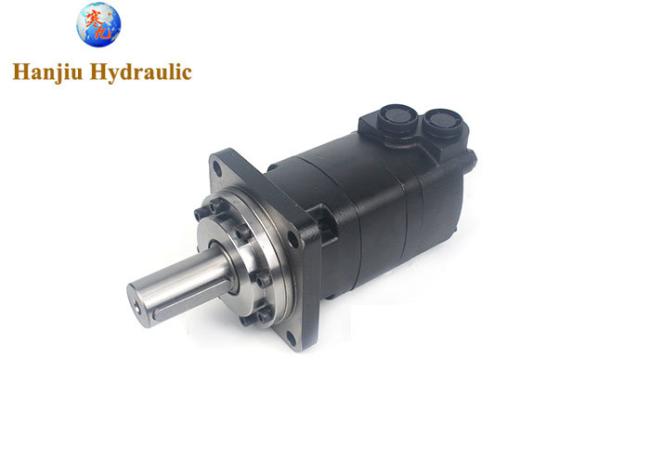

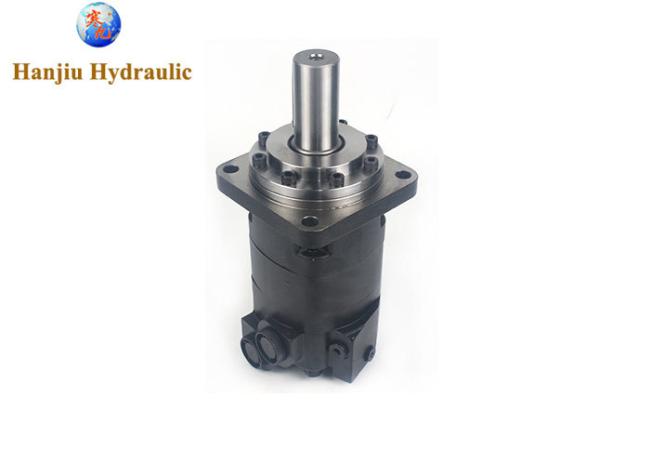

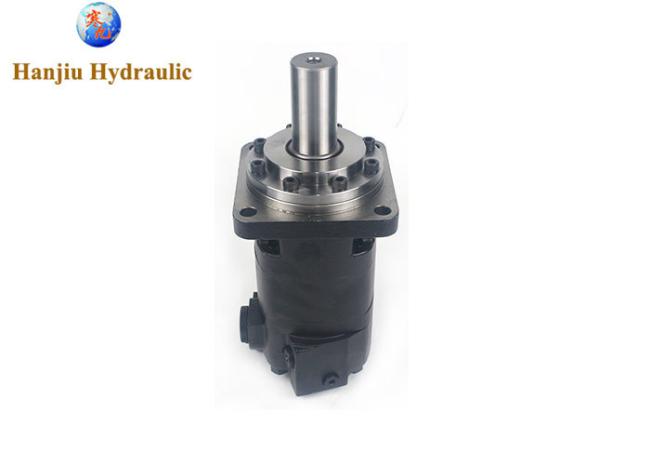

109-1236-006 Char-Lynn Eaton hydraulic orbital motor 400 cm3 straight shaft BSPP Ports
109-1236-006 Char-Lynn Eaton hydraulic orbital motor 400 cm3 straight shaft BSPP Ports
HANJIU CODE BMK4-400=M04240AH11AC0300000000000AA00F=109-1236-006
Displacement: 400 Cm3/r [9.9 In3/r]
Mounting: STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA.
BOLT CIRCLE. (SAE C)
Shaft: 40.00 [1.575] DIA. STRAIGHT WITH M12 X 1.75-6H THREAD, 7.955 [.3132] X 11.979 [.4716]
WIDE X 69.98 [2.755] STRAIGHT KEY
Ports: G 3/4 PORTS - STAGGERED PORTS
Flow: G 1/4 BSP STRAIGHT THREAD WITH CHECK VALVE
Application:Hydraulic motor for screening machine Western Retek OS514
Main specification
| TYPE |
BMK4 |
BMK4 200 |
BMK4 250 |
BMK4 |
BMK4 |
BMK4 |
|
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) |
cont. |
560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 |
20 |
20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
Order Code:
109-1184-006 110cc
109-1185-006 130cc
109-1227-006 160cc
109-1224-006 205cc
109-1225-006 245cc
109-1189-006 310cc
109-1190-006 395cc
