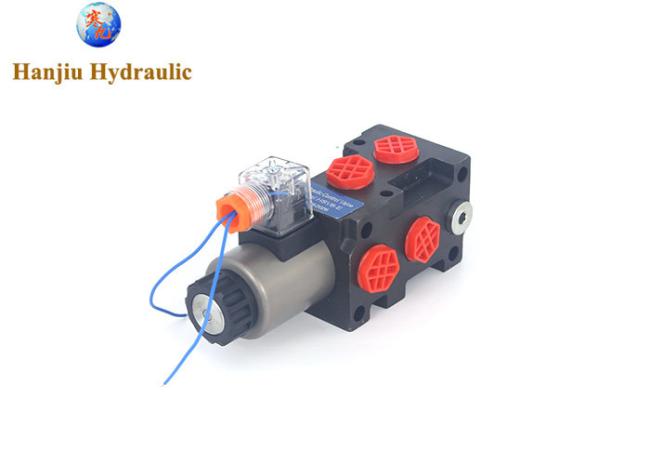

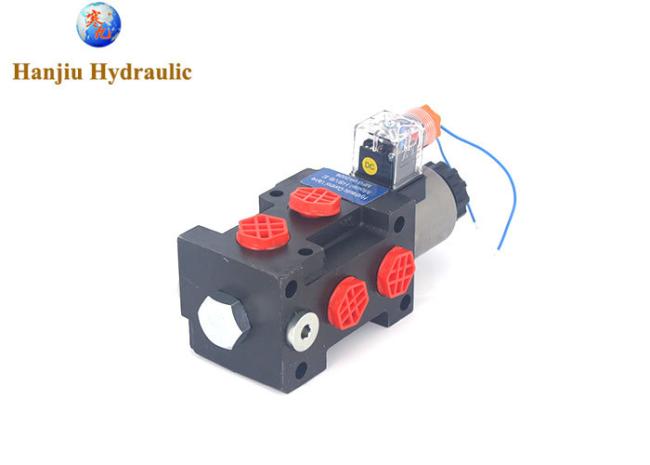

HSV6 is a 6-port 1-spool hydraulic solenoid selector/diverter valve with 12V electric valve

HSV6 is a 6-port 1-spool hydraulic solenoid selector/diverter valve with 12V electric valve

Key Specifications

• Max Flow Rate: 50 LPM (13 GPM)
• Nominal Pressure: 25 MPa / 3625 PSI (Max pressure up to 315 bar)
• Voltage Options: 12V DC
• Port Size: 7/8-14 UNF (#10 SAE) threads
• Case Drain: Not required
• Cylinder Support: Works with both single-acting and double-acting cylinders
• Manifold Capacity: Up to 3 valves can be linked together in parallel

Specifications:

Ordering code

HSV6---X---X---X---X

     1      2    3    4    5

1.series code

2.Model type: A/B/C

3.Number of sections:1-3( Model A,B available for stack)

4.Ports size

5.Solenoid type

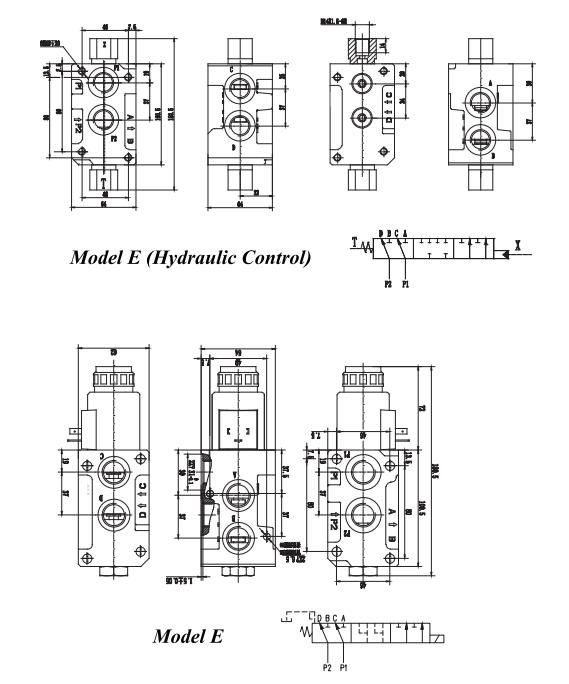

Model type

type A

Type B

Type C

Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.

Hanjiu hydraulic is always put clients rights at first,we hope both of us will earn more during our cooperation.

Choose HANJIU ,your business partner forever!
