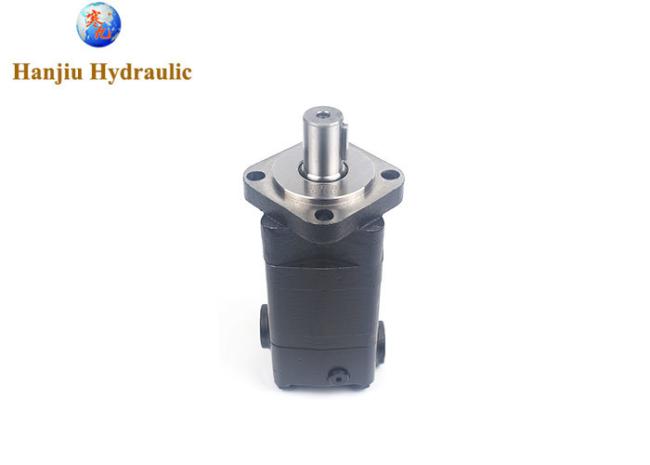

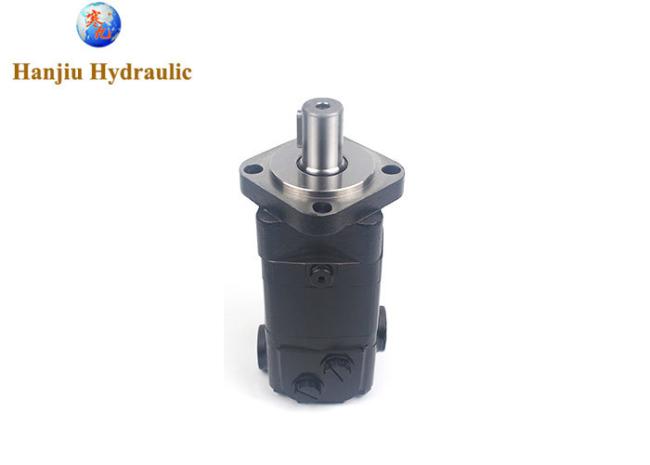

Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft
Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft
Product details:
type code 151F2206--BMSY-315-E4-G-SU
Displacement: 315 cm3.
Shaft: 31.75mm straight key shaft
Flange: standard type flange
Ports: UNF threaded.
BMSY Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY 475 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
The Motor Orbital OMS315 may not be the lowest-priced option on the market, but its materials and structural design are intended to minimize repairs and extend the equipment’s service life. While procurement costs are determined by the invoice at the time of order, the true cost of ownership is measured over time by accumulated maintenance hours and lost productivity. HANJIU not only provides hardware products but also offers technical services such as product selection and verification, installation guidance, and troubleshooting support, ensuring comprehensive operational assurance for users. For equipment requiring continuous and stable power output—such as winches, drilling rigs, mining machinery, and heavy-duty agricultural machinery—choosing the Motor Orbital OMS315 is a practical procurement solution that takes the entire lifecycle into account.
oms orbital motor diagram
oms flange motor diagram
orbital motor curve chart
oms motor diagram
oms torque chart
oms orbital motor curve
oms motor specs
oms torque specs
