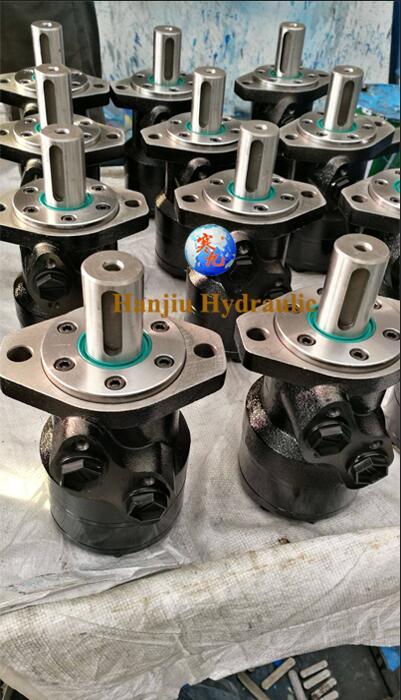

Industrial Orbit Hydraulic Motor BMR 80 / OMR 80 Shaft 32mm For Forest Machinery

Name: Industrial Orbit Hydraulic Motor BMR 80 / OMR 80 Shaft 32mm For Forest Machinery
Brand: Shijiazhuang Hanjiu Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 10 pieces

Delivery Time: 3-5 work days

Brand: HANJIU

Product Description

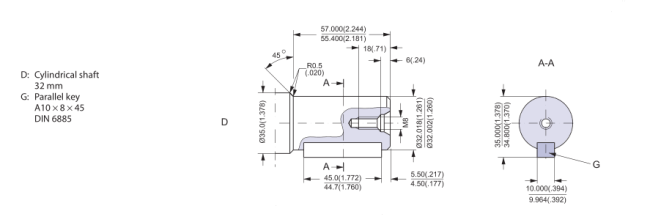

Orbit Hydraulic Motor BMR80 / OMR80 Shaft 32mm Hydraulic Motor Component Repair

► Characteristic Features

1. BMR series of motor are small volume, economical type, which is designed with Spool Valve, which adapt the gerotor gear set design and provide compact volume, high power and low weight.

2. Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.

3. Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

4. Advanced construction design, high power and low weight.

► Specification

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

► Application

Orbit Hydraulic motor BMR used for mining,industrial and agriculture various applications.

1. cranes and transporting equipment

2. geological drilling equipment

3. agricultural and forest machinery
