Orbital Hydraulic Motor BMM 8 BMM 12.5 , Low Weight Mini Hydraulic Motor

Price Negotiable

Price: Negotiable

MOQ: 10 Pieces

Delivery Time: Negotiable

Brand: HANJIU

Product Description

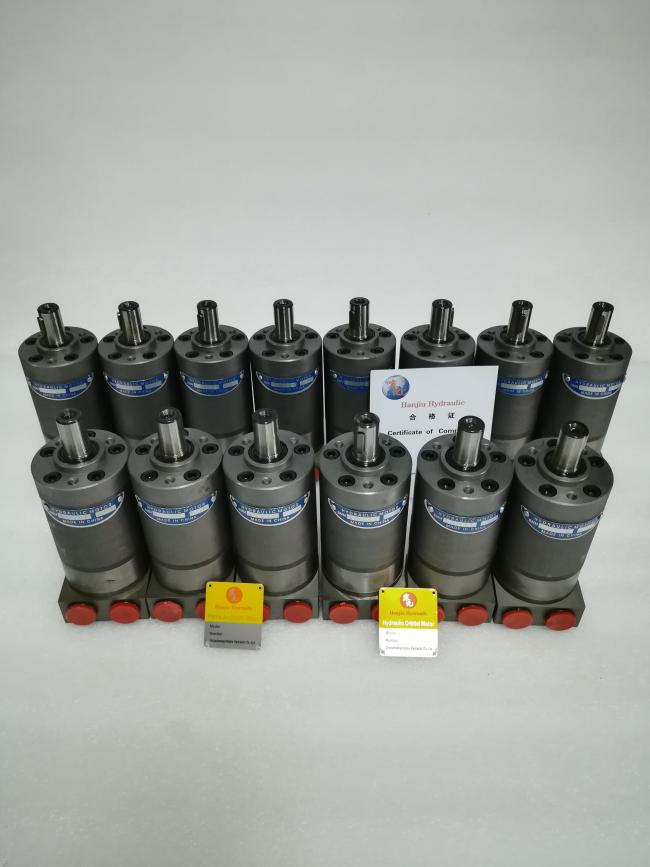

Small Hydraulic Motors BMM Series Orbital Motor BMM8 BMM12.5 Mini Hydraulic Motor

► Characteristic Features

♦ BMM series motor are small volume,economical type,which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weigth.

♦ Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.

♦ Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

♦ Advanced construction design, high power and low weight.

► Specification

HANJIU	BMM
	OMM
M+S	MM
EATON	J Series

Type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4
