Economical Type Orbital Steering Valve OSPC 100 / 101s - 100 For Harvester Steering
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description

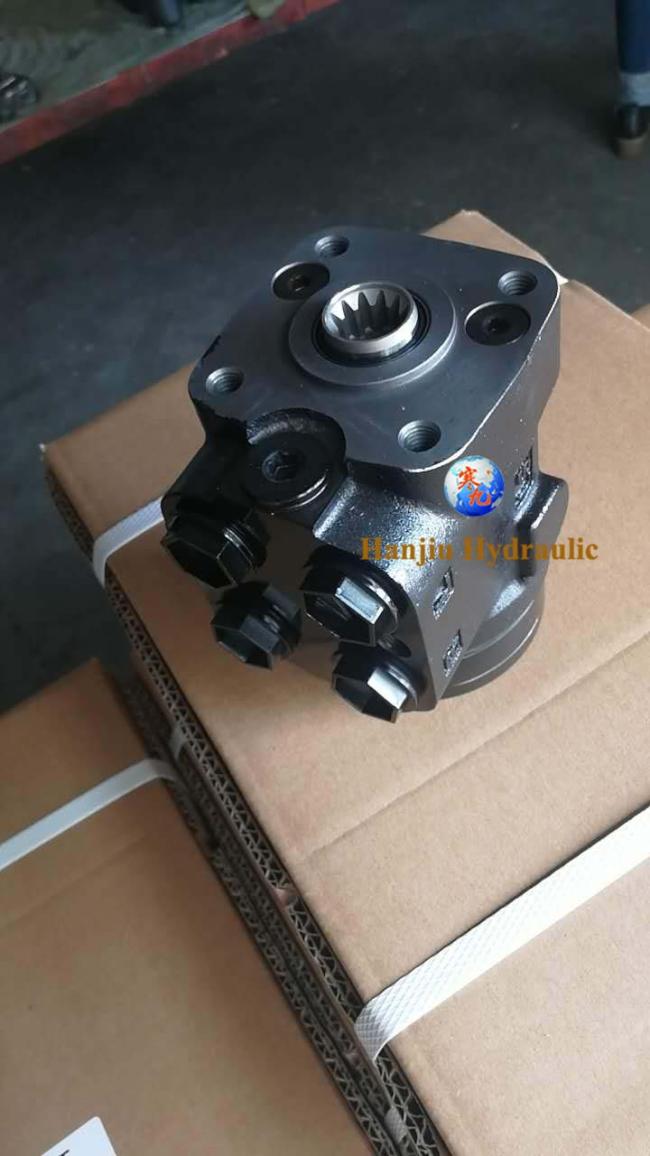

Orbital Steering Valve OSPC100 / 101s - 100 For Agriculture Tractor Steering Power
1. Characteristic Features
► 101s Orbital Steering Valve is with relief valve ,suction valve, inlet check valve intergrated.
► Different valve can be assembled freely,compact ,more convenient ,fitting.
► European and American standards.
► Replace (OSPC), M+S (HKUS) series.
2. Specification
| HANJIU | 101s |
| OSPC | |
| M+S | HKUS |
| Eaton | 401-1 |
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
3. Application
Orbital Steering Valve 101s Series same than OSPC , HKUS Steering units used for the following tractor and combine harvester
► Massey Ferguson 100 series, 200 series, 500 series, 600 series
► 1640, 1840, 2040 2040S, 2140, 2250, 2650
► David Brown 880, 1194, 1210, 1212, 1294, 1394, 1494, 1594
► Landini 30 series, 40 series, 50 series, 60 series, 70 series
► Fiat M100, M115, M135, M160, L60, 65
► TL65, TL70, TL80, TL90, TL100, TM115
► Belarus MTZ-80, MTZ-82, T-16, T-25, T-150
