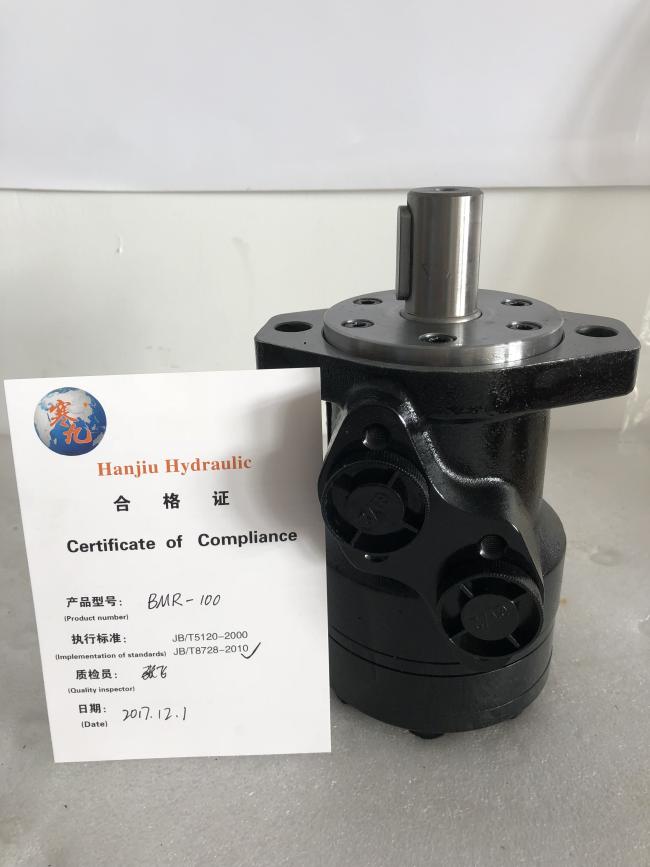

Low Speed Hydraulic Winch Motor BMR Orbital Motor 100cc 160cc 200cc For Marine Winch

Hydraulic Winch Motor BMR Orbital Motor 100cc, 160cc, 200cc For Marine Winch

Description:

BMR Hydraulic Motor can replace OMR, M+S MR, etc.

This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation. It;s the hot sell model, the displacement from 50cc to 500cc, shaft 25mm and 25.4mm. With the standard size and easy to install.

Features:

1. Advanced design of spool and gerotor, which has small size and compact structure;

2. Credible design of shaft seal, which can bear high pressure and be used in parallel or in series;

3. Direction of shaft rotation and speed can be controlled easily and smoothly;

4. Best combination of efficiency and economy in medium duty applications;

5. A veriety of connection types of flange, output shaft and oil port.

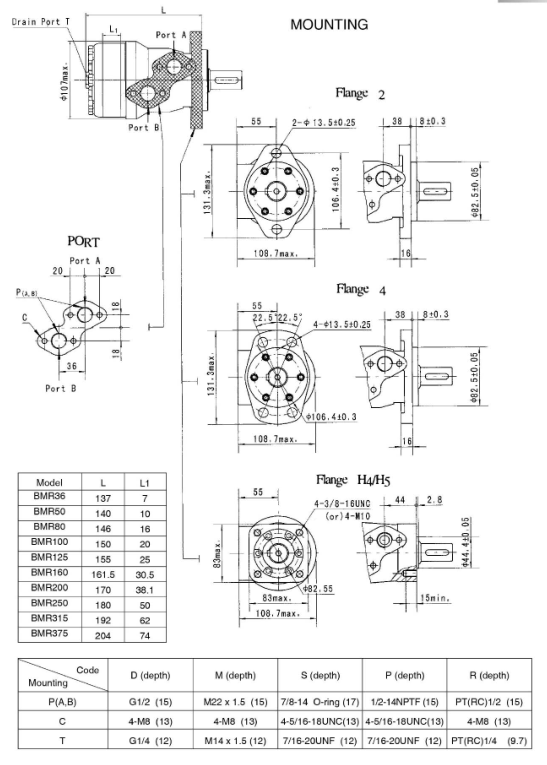

Main Sprcifications:

Applications:

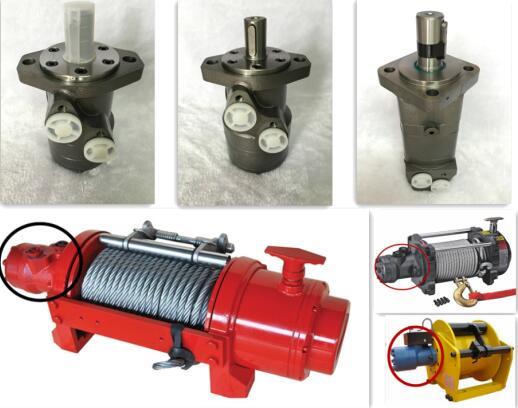

This series Hydraulic Orbital Motor are widely used in plastic injection machinery, fishing machinery, mining equipment, Oil-drilling equipment, lift trucks, wheel loader, harvester machinery and tractors.
