16 MPa Pressure Hydraulic Gear Pump CBT Series OEM Hydraulic Pump For Log Splitter
Hydraulic Gear Pump CBT Series OEM AL163918 Tractor
CBT Series gear pump using a high-strength aluminum alloy extrusion shell, bearing capacity and high DU bearing floating side plate structure. With high pressure, high speed, simple structure, easy maintenance, reliable, long service life and so on.
Features:
1. Low noise gear pump and allowing for either clockwise or counter-clockwise operation.
2. High power density
3. Bi-rotational pressure balanced
4. Continuous usage

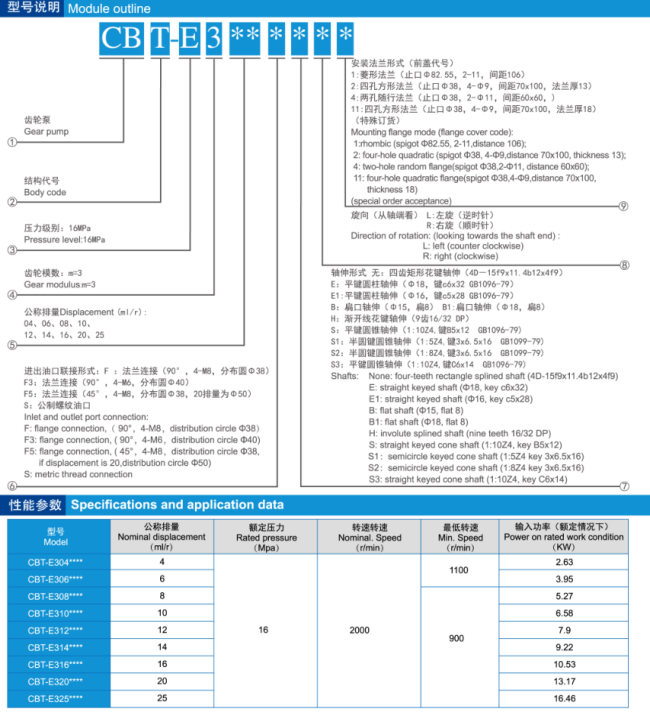

Main Specifications:
| Model |
Displacement (ml/r) |
Rated Pressure | Nominal Speed | Min. Speed |
Power (KW) |
| CBT-E304**** | 4 | 16 | 2000 | 1100 | 2.63 |
| CBT-E306**** | 6 | 3.95 | |||
| CBT-E308**** | 8 | 900 | 5.27 | ||
| CBT-E310**** | 10 | 6.58 | |||
| CBT-E312**** | 12 | 7.9 | |||
| CBT-E314**** | 14 | 9.22 | |||
| CBT-E316**** | 16 | 10.53 | |||
| CBT-E320**** | 20 | 13.17 | |||
| CBT-E325**** | 25 |
16.46 |
Applications:
Hydraulic Gear Pump can widely use for agricultural machines and construction machines, such as tractor, harvester, reapers, forklift trucks anf other hydraulic system, etc.
