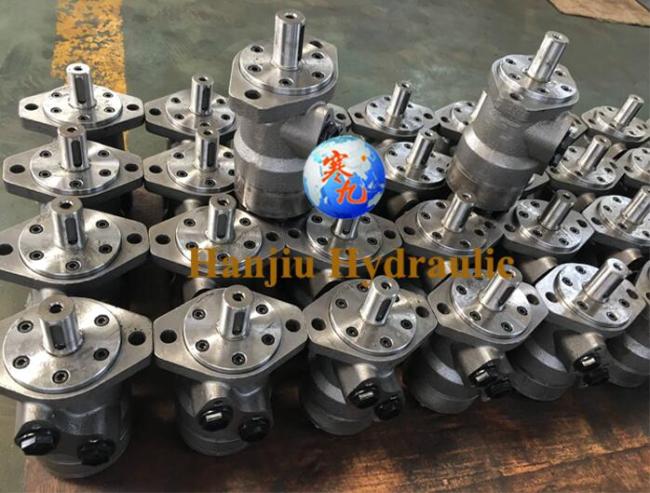

Black Industrial Hydraulic Motor , BMP Hydraulic Motor BMP 250 BMP 315 BMP 400
Hydraulic Winch Motor BMP250 , BMP315 , BMP400 For Industrial Hydraulic Winches
1. Characteristic Features
• BMP sesies high speed motors are small volume, economical type,which is designed with shaft distribution flow.
• Which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
• The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
• With the axial oil distribution structur, it is of smaller size and less weight.
• With two inner check valves, no drain connection.
• With cycoid group with the roller, it has a small friction nd high mechanical efficiency.
• High pressure oil seals
2. Specification
| Type | BMP BMPH 36 |
BMP BMPH 50 |
BMP BMPH 80 |
BMP BMPH 100 |
BMP BMPH 125 |
BMP BMPH 160 |
BMP BMPH 200 |
BMP BMPH 250 |
BMP BMPH 315 |
BMP BMPH 400 |
BMP BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
3. Application
BMP Hydraulic motors used for hydraulic winches.
• Truck Hydraulic Winches
• Industrial Hydraulic Winches
• Fishing Hydraulic Winches
• Fishing-boat Hydraulic Winches
