Professional Orbital Steering Control Valve 101S 160 Compact / Convenient
Orbital Steering Valve 101S 160 For Steering Pump
Series 40 1640 2040
Orbital Steering Valve
101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features :
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Low hydraulic noise
compact and convenient
Can replace any brand , such as OSPC , M+S HKUS etc
Main Specifications:

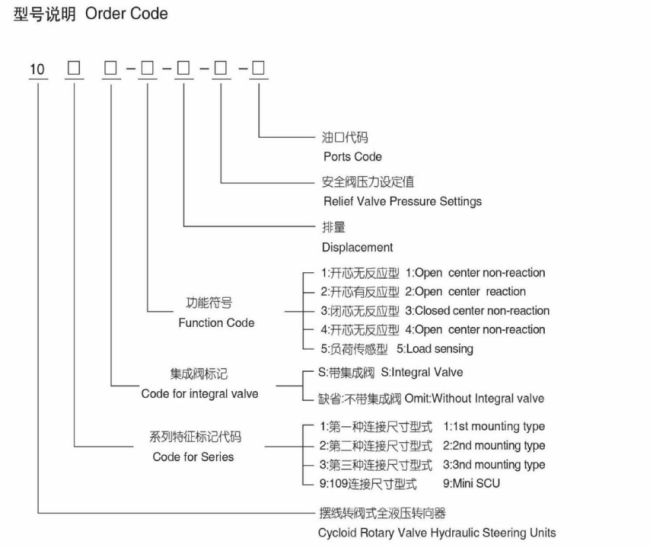

| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications :
Orbital Steering Valve is widely used in the steering control system and Walking mechanical steering
such as the steering system of many kinds of industrial and agricultural
mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
We produce the products match with the OEM number of all machines.
