Agricultural Equipment Miniature Hydraulic Motor , BMM Series Micro Hydraulic Motor
Mini Hydraulic Motors, Micro Hydraulic Motors, Small Hydraulic Motors
Descriptions:
BMM series mini hydraulic motor are small volume, economical type, which is designed with shaft distribution flow, whichadapt the Gerotor gear set design and provide compact volume, high power and low weigt.
Characteristic features:
1. Intermittent means the entrance of the maximum pressure;continuous working pressure means the differential pressure.
2. The running time should not exceed 10% under interoittent working conditions.
3. The maximum working temperature is 80°.
4. The maximum allowable back pressure is 10MPa,but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding.
Applications:
The Small motor have widely applications, such as the following:
1. Construction equipment
2. Agricultural equipment
3. Material handling & Lifting equipment
4. Forestry equipment
5. Lawn and turf equipment
6. Special purpose
7. Machine tools and stationary equipment
8. Marine equipment
Main Specifications:
| Type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

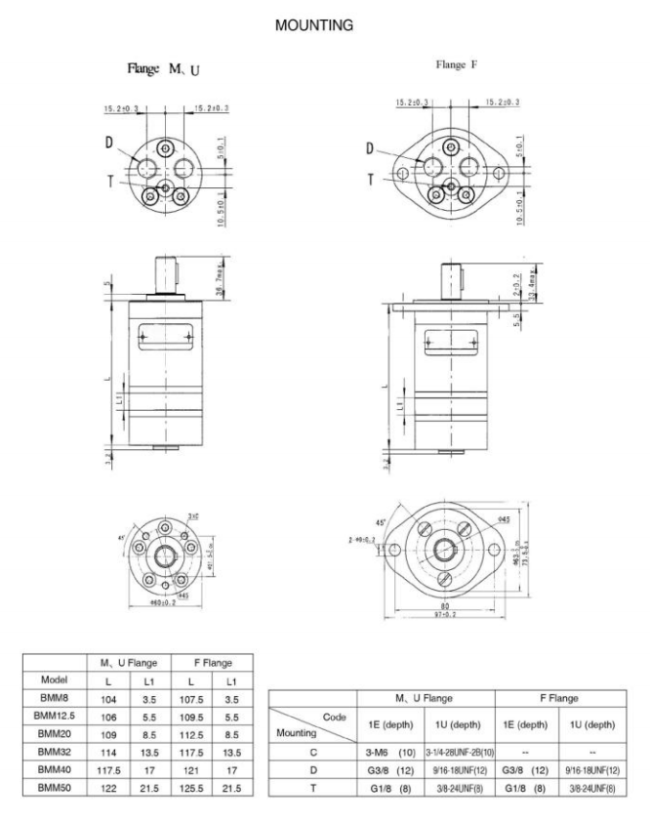

End Port:

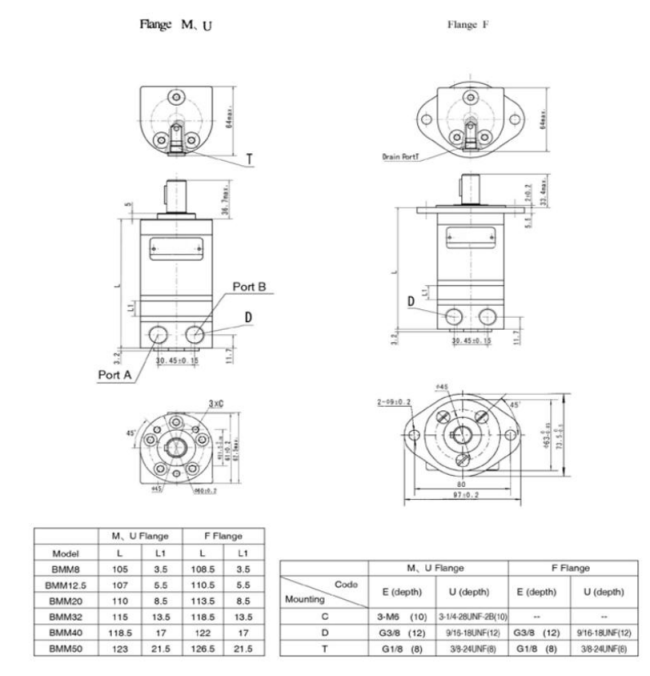

Side Port:
Model Parameters:
* Displacement: 8cc/ 12.5cc / 20 cc/ 32cc / 40cc / 50cc
* Flange: 3-M6 Circle-flange, pilotØ31.5×5
3-1/4-28UNF Circle flange,pilot Ø31.5×5
2-Ø9 Rhomb-flange, pilotØ63×2
* Output shaft: ShaftØ16, parallel key 5×5×16
ShaftØ15.875, parallel key 4.8×4.8×19.05
ShaftØ16.5, involute B17×14, DIN5482
* Ports and drain port: G3/8, G1/8
9/16-18UNF, 3/8-24UNF
End port G3/8, G1/8
End port 9/16-18UNF, 3/8-24UNF
*Rotation direction: Forward&Reverse
