Medium Speed Orbit Hydraulic Motor BMRW 160cc with 35 mm tapered shaft

• Output volume (cc/rev): 160

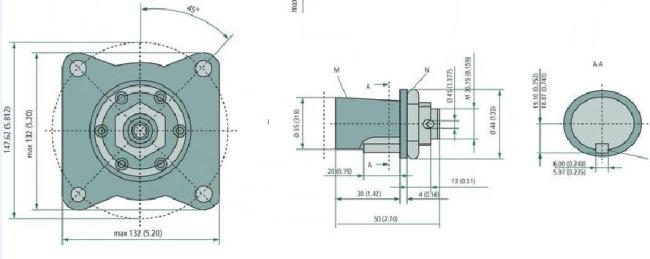

• Shaft: Konuswelle 35mm
• max r.p.m.: 375
• Torque max. (Nm): 380
• Power max. (kW): 12,5
• Inlet pressure (bar): 175
• Pressure difference (bar): 175
• Volume flow max. (l/min): 60
• Shaft seal version: Standard
• Engine version: with non-return valves
• Connection: G 1/2"
• Leakage oil connection: G 1/4"

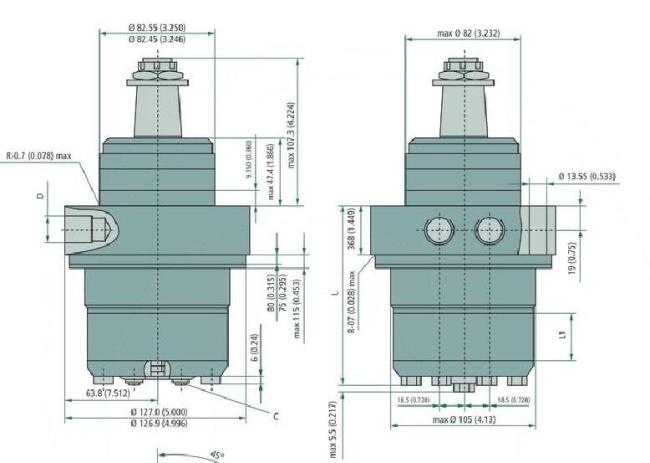

• L (mm): 125,8
• L1 (mm): 27,8

Characteristics

• Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
• The output shaft adapts in needle roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
• Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
• Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
