CBN Series Gear Pump High Pressure Oil Pump For Hydraulic Station
CBN Series Gear Pump High Pressure Oil Pump For Hydraulic Station
Description:
CBN series gear pumps are the power components in hydraulic systems. The pump uses high-precision gears, high-strength aluminum alloy shell, floating sleeve, it has a simple structure, light weight, high efficiency, low noise, reliable use and so on. Widely applicable to hydraulic systems such as automobiles, construction machinery, lifting and transporting machinery, mining machinery, light industrial machinery, agricultural machinery and industrial automation.
Intruduction:

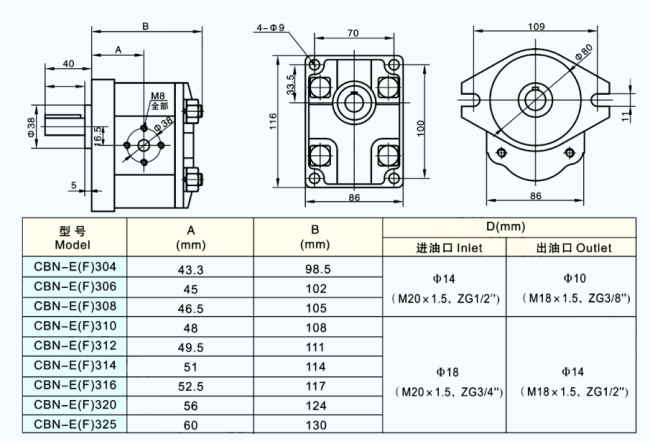

Specification:
| Model |
Displacement (ml/r) |
Pressure (MPa) | Speed(r/min) | Volumetric efficiency(≥%) |
Input Power (KW) |
||
| Rated | Max | Rated | Max | ||||
| CBN-E(F)304**** | 4 |
E 16 F 20 |
E 20 F 25 |
2000 | 300 | ≥92 | 3.0 |
| CBN-E(F)306**** | 6 | 4.6 | |||||
| CBN-E(F)308**** | 8 | 6.1 | |||||
| CBN-E(F)310**** | 10 | 7.7 | |||||
| CBN-E(F)312**** | 12 | 9.0 | |||||
| CBN-E(F)314**** | 14 | 10.3 | |||||
| CBN-E(F)316**** | 16 | 12.8 | |||||
| CBN-E(F)320**** | 20 | 16.1 | |||||
| CBN-E(F)325**** | 25 | 17.4 | |||||
| Brand | Tractor Model | OEM Number | ALTERNATIVE NUMBERS | Hanjiu Hydraulic |
|
Series 40: 3140 3640 3640S Series 50: 3050 3350 3650 |
AL200179 Gear Pump |
4546, 4552, 4553, 4554, 6130, 6230, 6325, 6330 | CBT-F3 series | |
|
Series 40: 1640 1840 1840F 2040 2040S Series 41: 2141 2541 2941 3141 3641 Series 50: 1550 1750 1850 1950 2250 2250F 2450 2450F 2650 2650F 2650N 2850 3050 3350 Series 51: 2251 2351 2651 2951 3351 3651 |
AL41631 Orbitrol Steering Unit |
OSPC 125 CN 150-0179 | 101S-125 CN | |
| Massey Ferguson |
Series 200: 230 240 253 (UK) 261 263 (UK) Series 300: 340 342 350 352 355 360 362 365 372N, 375 382N 390 396 398 399 Series 400: 420 430 Series 4200: 4215 4220 4225 4225HV 4235 4235 (USA) 4235HV 4235HV (USA) 4240 4245 4245HV 4255 4255HV 4260 4265 4270 Series 4300:4315 4320 4325 4325HV 4335 4335HV 4345 4345HV 4355 4355HV 4360 4365 |
3821548M91 Orbitrol Steering Unit |
1695444M91 OSPC 100 ON |
101S-100 ON |
| Fiat | Types: 3435 3830 3935 4030 4135 4230, 4430 45-66S 50-66S 50-86 50-86S 55-56 55-66S 55-86 55-86S 56-66S 60-56 60-66S 60-86 62-86 65-56 65-66S 70-56 70-66S 70-86 70-86S 72-86 80-66S 82-86 |
510625318 Gear Pump |
5129483, 5169772, 5179719, A 31 X | CBT Series |
| Types: 55-46 60-46 65-46 55-66 60-66 65-66 70-66 80-66 60-76 70-76 80-76 55-90 60-90 |
38717671 Orbitrol Steering Unit |
OSPC-100ON, 150-N1173 | 101S-100 ON | |
| Types: TN 55, 60, 65, 70, 75, 80, 90, 95 |
0510525357 Gear Pump |
5179730, A 25 X | CBT Series | |
| Types: TD5040 5050 60D 70D 80D 90D 95D |
5162551 Orbitrol Steering Unit |
OSPC 160 ON 150-N1282 |
101S-160 ON |
