151B3005 Hydraulic Motor, 4 Bolt, 40mm Key Shaft, G 3/4 port
151B3005 Hydraulic Motor, 4 Bolt, 40mm Key Shaft, G 3/4 port

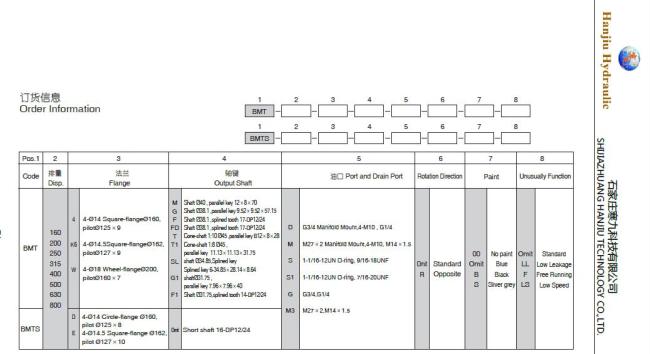

BMT-500-4MD is a replacement hydraulic motor of 151-b3005
- 1.BMT = OMT
- 2.displacement 500cc (other displacement available)

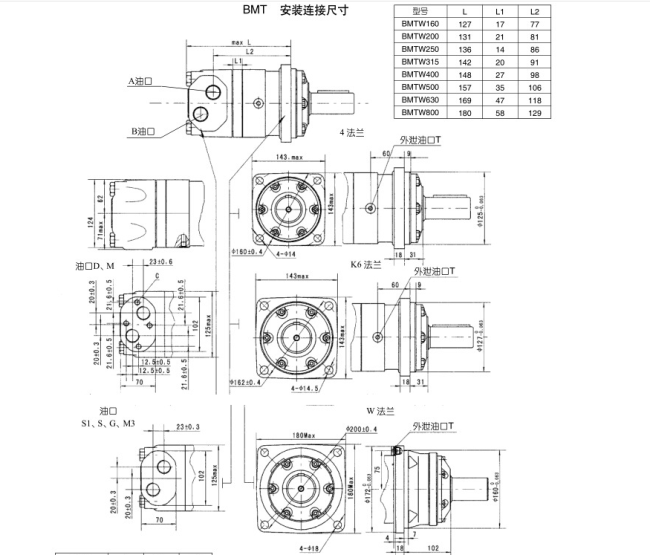

- 3.flange: 4-Ø14 Square-flangeØ160, pilotØ125×9
- 4.output shaft: Shaft Ø40 , parallel key 12×8×70

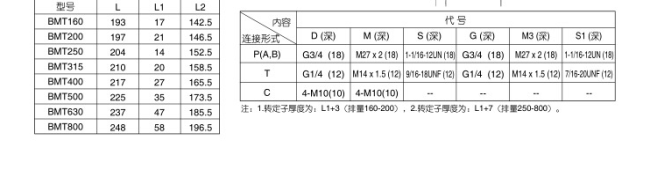

- 5.port and drain port: G3/4 Manifold Mount,4-M10 , G1/4
Characteristic Features:
- 1.Smooth running over the entire speed range
- 2.Constant operating torque over a wide speed range
- 3.Long life under extreme operating conditions
- 4.High return pressure without the use of drain line (High pressure shaft seal)
- 5.High efficiency
- 6.High starting torque
- 7.Robust and compact design
- 8.High radial and axial bearing capacity
- 9.For applications in both open and closed loop hydraulic systems
- 10.Suitable for a wide variety of hydraulics fluids
Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) |
161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) |
cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

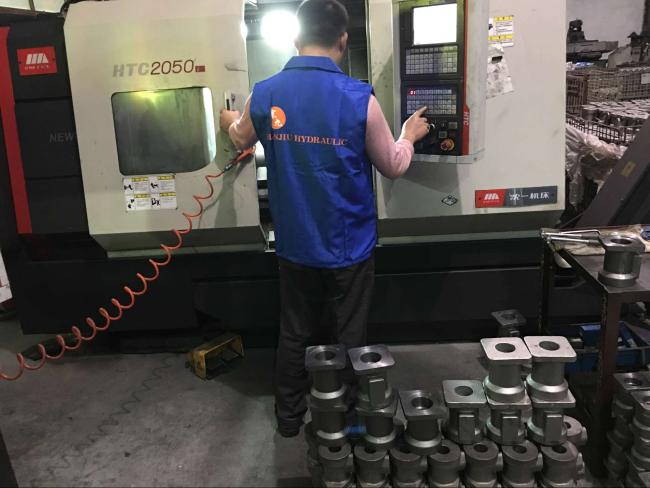

'Shijiazhuang Hanjiu Technology Co.,ltd.' is a team focus on hydraulic service, hydraulic R&D, manufacturing, processing and technology transfer.
We professional on Heavy equipment parts for Earthmoving Machines, Construction Machines and Agriculture Machinery.
We have serve Concrete Equipment, Cranes, Boom Trucks, Forklifts, Manlifts, Aerial Platforms, Generators, Excavators, Tractors, Off-highway Trucks and other heavy equipment.
We serve market America, South America, Europ, Middle East, Southeast Asia, etc.
Out items suitable for , Komatsu, , Hitachi, Liebherr, JCB, Bobcat, Kobelco, Sumitomo, Yanmar, Heli, Junjin, Cifa, Doosan, etc.

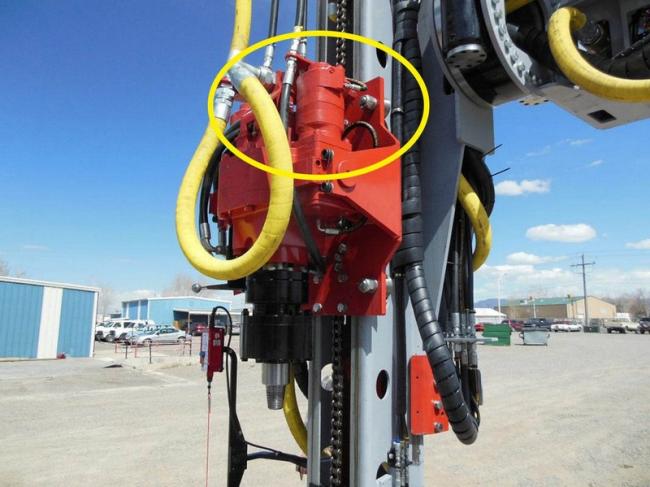

Applications:
- 1.Construction
- 2.Agricultural
- 3.Material handling & Lifting
- 4.Forestry
- 5.Lawn & turf equipment
- 6.Special purpose
- 7.Machine tools & stationary
- 8.Marine equipment
