FORD FIAT C42X Main Pump 5179726, 5129493, 5169041
FORD FIAT C42X Main Pump 5179726, 5129493, 5169041
Hanjiu pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances,Hanjiu CBN-*300 series hydraulic gear pump can be used for Ford Fiat C42X main pump 5179726,5129493,5169041
Technical parameters
Main Specifications:
| F1 | F2 | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | 47.6x22.2 φ23 | 47.6x22.2 φ20 | 06 |
52.4x 26.2 φ23 |
7.6x22.2 φ20 |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | 52.4x26.2 φ26 | 18 | 52.4x26.2 φ26 | ||
| 20 | 20 | ||||
| 23 | 23 | ||||
| 25 | 25 | ||||
| 27 | 27 | ||||
| 30 | 30 | ||||
| 32 | 32 | ||||
| 36 | 36 | ||||
| 40 | 40 | ||||
| S | FS | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | M22x1.5-6H | M18x1.5-6H | 06 | 52.4x26.2 φ26 |
M22x 1.5-6H |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | M33x2-6H | M27x2-6H | 18 |
M33x 2-6H |
|
hanjiu Gear Pump Features:
1. Low noise and long service life
2. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
3. Input shaft types: key,rectangular spline,involute spline and woodruff
4. Connections types for the inlet and outlet ports: thread or flange etc.
5. Axial gap automatic compensation mechanism keeps high volumetric efficiency
Application:
- Sprinkler
- Mini excavator
- Driven scraper conveyor
- Screw
- Baler
- Hydraulic Winch
- Fishing boat
- Plastic injection mold machine
- Cleaner
- Grass cutter
- Winches
- Conveyors
- Slews
- Sweeper Drives
- Augers Cutters
- Mowers
- Chippers
- Drilling machine
- Municipal machinery, agriculture, forestry and construction equipment etc

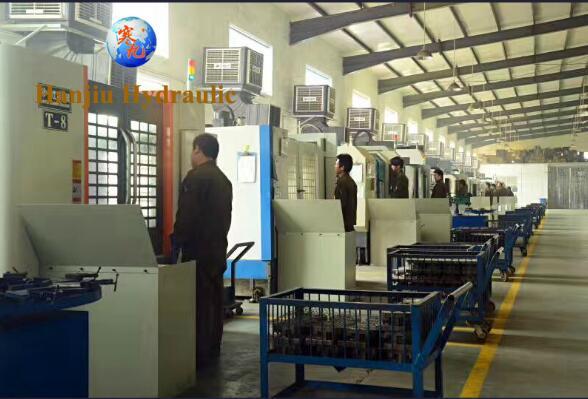

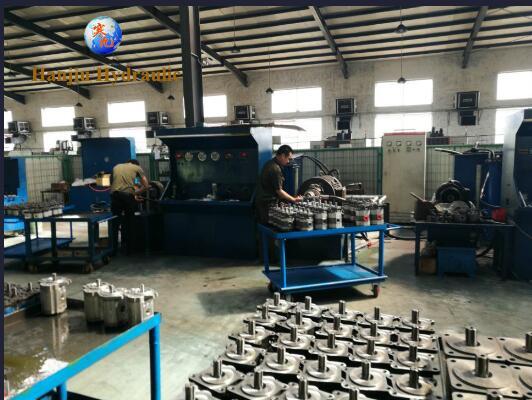

Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad. The company passed the iso9001:2008 quality management system certification in 2013.
