Right Hydraulic Gear Pump 15ml Square Mounting With Spline Shaft Long Service Life
Right (clockwise) gear pump 15ml, square mounting, spline shaft, model C33 A42
CBN Series gear pump using a high-strength aluminum alloy extrusion shell, bearing capacity and high DU bearing floating side plate structure. With high pressure, high speed, simple structure, easy maintenance, reliable, long service life and so on.
hanjiu Gear Pump Features:
1. Low noise and long service life
2. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
3. Input shaft types: key,rectangular spline,involute spline and woodruff
4. Connections types for the inlet and outlet ports: thread or flange etc.
5. Axial gap automatic compensation mechanism keeps high volumetric efficiency

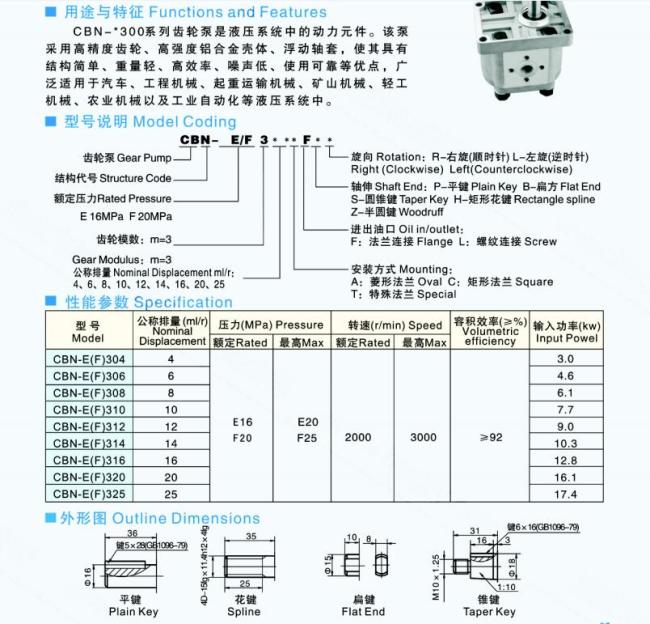

Main Specifications:
| F1 | F2 | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | 47.6x22.2 φ23 | 47.6x22.2 φ20 | 06 |
52.4x 26.2 φ23 |
7.6x22.2 φ20 |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | 52.4x26.2 φ26 | 18 | 52.4x26.2 φ26 | ||
| 20 | 20 | ||||
| 23 | 23 | ||||
| 25 | 25 | ||||
| 27 | 27 | ||||
| 30 | 30 | ||||
| 32 | 32 | ||||
| 36 | 36 | ||||
| 40 | 40 | ||||
| S | FS | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | M22x1.5-6H | M18x1.5-6H | 06 | 52.4x26.2 φ26 |
M22x 1.5-6H |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | M33x2-6H | M27x2-6H | 18 |
M33x 2-6H |
|

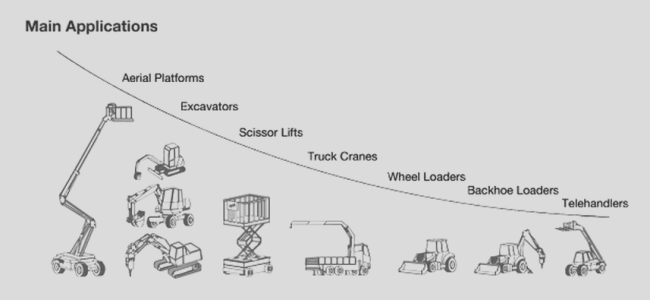

Applications:
This series pumps also have the advantage of its simple structure, reliable performance, volumetric efficiency, shock resistence and long life service. And they are widely used in the tractors, construction machinery, sanitation trucks and other hydraulic systems.
Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad. The company passed the iso9001:2008 quality management system certification in 2013.
Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
