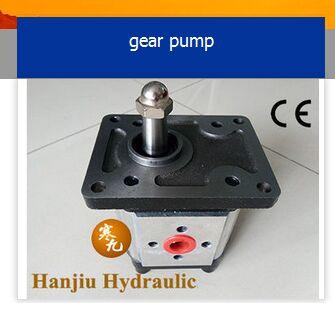

Professional Hydraulic Gear Pump For Tractor 0510 625 039
Gear pump 20A(C)16X006 16cc clockwise for Tractor 0510 625 039
Specifications:
- Group 1 pumps
Displacements from 0.6 to 13.4 cc/rev
Mounting flanges: SAE “AA” 2 bolt, US 4F-17 4 bolt, European 4 bolt and “through bolt” front
manifold discharge DC power pack design
Side ports standard, rear ports available
- Group 2 pumps
Displacements from 4 to 33 cc/rev
Mounting flanges: SAE “A” 2 bolt and 4 bolt European standard
O ring side ports standard, rear ports available
- Group 3 pumps
Displacements from 18 to 90 cc/rev
Mounting flanges: SAE “A” and SAE “B” 2 bolt and 4 bolt European standard
O ring side ports standard, rear ports available
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400 |
Our products can be perfectly applied to machinery.Hanjiu pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances

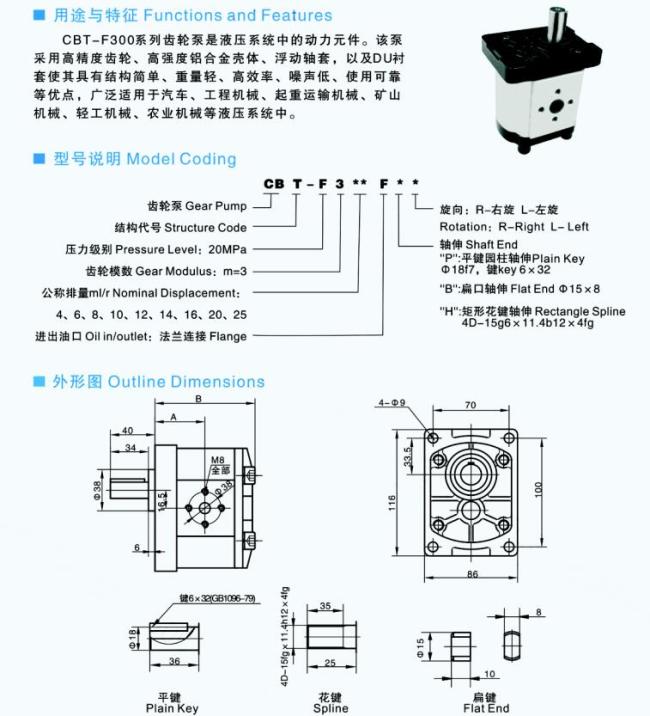

CBT Series gear pump using a high-strength aluminum alloy extrusion shell, bearing capacity and high DU bearing floating side plate structure. With high pressure, high speed, simple structure, easy maintenance, reliable, long service life and so on.
Any need for high torque, low speed applications.
- Sprinkler
- Mini excavator
- Driven scraper conveyor
- Screw
- Baler
- Hydraulic Winch
- Fishing boat
- Plastic injection mold machine
- Cleaner
- Grass cutter
- Winches
- Conveyors
- Slews
- Sweeper Drives
- Augers Cutters
- Mowers
- Chippers
- Drilling machine
- Municipal machinery, agriculture, forestry and construction equipment etc
![]()
- The company passed the iso9001:2008 quality management system certification in 2013.
- Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad.
![]()
- our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
