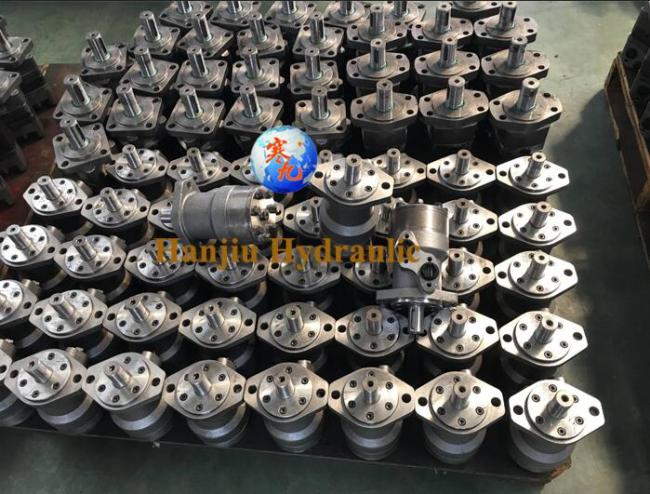

Shaft 25MM Cylindrical Orbit Hydraulic Motor BMR250 / OMR250 151-1236
Hydraulic Motor BMR250 / OMR250 151-1236 , Shaft 25MM Cylindrical
Hanjiu Hydraulic Motor BMR250 match than OMR250 151-1236 :
• Shaft : 25mm
• Oil Port : G1/2"
• Drain port : G1/4"
• Flange : 2 flange
• Key : 8x7x32mm
Features
• Hydraulic Augers Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life.
• Orbit Motors has a wide speed range, high starting torque and rotating stable at high speed compact and light.
• It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
• Compact design of spool and gear set , which provide mini volume, high power and low weight.
• Credible design for shaft seal , which can bear high pressure.
• Direction of shaft rotation and speed can be controlled easily and smoothly.
Application
1. Construction equipment
2. Agricultural equipment
3. Forestry equipment
4. Road Sweepers
Specification
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
