2 Flange Low Speed High Torque Hydraulic Motor 25mm Shaft Size For Construction Equipment

Price Negotiable

Price: Negotiable

MOQ: 50 Pieces

Delivery Time: Negotiable

Brand: HANJIU

Product Description

151-1234 , 151-1235 , 151-1237 , 151-1243 OMR / BMR Orbital Motors

BMR / OMR 151-1234 , 151-1235 , 151-1237 , 151-1243 Motor Details:

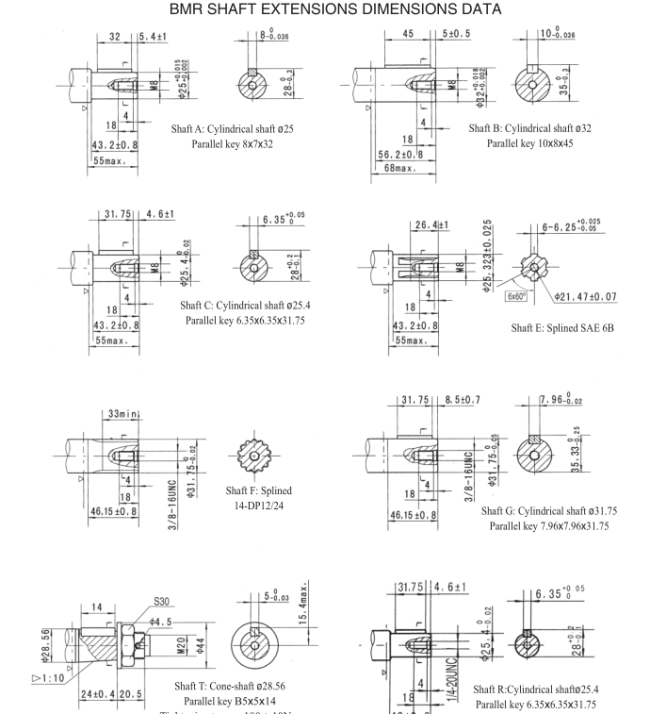

• Shaft : 25mm

• Oil Port : G1/2"

• Drain port : G1/4"

• Flange : 2 flange

• Key : 8x7x32mm

Application

1. Construction equipment

2. Agricultural equipment

3. Forestry equipment

4. Road Sweepers

Specification

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5
