151B-3103 Hydraulic Drive Motor , Hydraulic Orbital Motors Shaft 50 Parallel Key

Price Negotiable

Price: Negotiable

MOQ: 1 Sets

Delivery Time: 10-15 work days

Brand: HANJIU

Product Description

151B-3103 Hydraulic Motor , 4 bolt Square-flange 200, Shaft 50 parallel key

BMV-630-4AD is a replacement motor of 151B-3103

BMV = OMV
displacement = 630cc
4-Ø18 Square-flangeØ200
4-Ø18 Square-flangeØ200
G1 Manifold 4×M12, G1/4

Introduction:

hanjiu strong at replacement motor of many makes, , Eaton Char-lynn, Parker, M+S, White, Brevini, Rexroth

Specification:

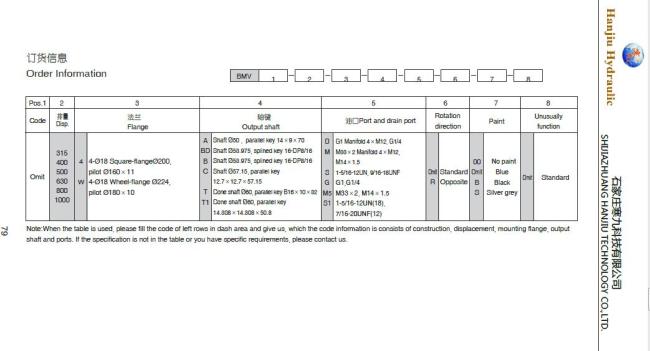

Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here.

Main Specifications:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
