Concrete Pump Parts Hydraulic Geroler Motor For Putzmeister / Mercedes-Benz
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
10 - 15 work days
Brand:
HANJIU
Product Description
Concrete Pump parts for Putzmeister, Mercedes-Benz
Shijiazhuang hanjiu technology, strong at replacement motor supply.

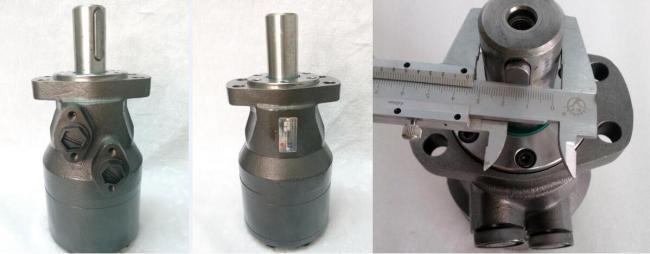

BMH-500 is a replacement motor of Putzmeister OEM part
BMH-500 is a replacement motor of Mercedes-Benz OEM part
BMH-500 is a replacement motor of OMH 151H1016 OMH
Specifications:
- BMH-500-4MD = 151H1016
- displacement = 500cc
- 4ר13.5 Rhomb×flange
- Shaft Ø35 , parallel key 10×8×45
- G1/2 Manifold mount 4×M8, G1/4
Applications:
- concrete pump of
- Putzmeister,
- Schwing,
- Sebhsa,
- Sermac,
- Daf,
- Man,
- Mercedes-Benz,...
- M+S
Technical data sheet:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 |
|
Characteristic Features:
- Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
- Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
- Special design in the driver-linker and prolong operating life.
- Special design for distribution system can meet the requirement of low noise of unit.
- Compact volume and easy installation
