High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF
High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF
| Concrete Pump | Motor |
| Putzmeister | BMH / OMH / MH160cc,500cc,750cc |
| SCHWING | BMH / OMH / MH160cc,500cc,750cc |
| CIFA | BMH / OMH / MH160cc,500cc,750cc |
| JUNJIN | BMH / OMH / MH160cc,500cc,750cc |
| Sany | BMH / OMH / MH160cc,500cc,750cc |
1. Features
- Low internal leakage
- High torque at low speeds
- Large displacement volume
- Relatively small size
- Low noise level
- Longer life expectancy
- Low speed, high torque motors
- Roller vane type drive system – offers high volumetric efficiency and long life.
- Manufactured with high quality materials and systems to exacting standards
2. Main Specifications
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |

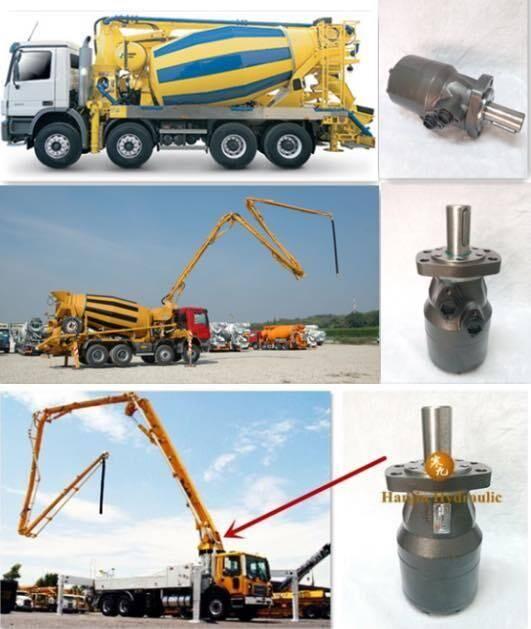

3. Applications
• Concrete Pump
• Conveyor drives
• Rotator motors
• Agricultural machinery
• Wheel drives

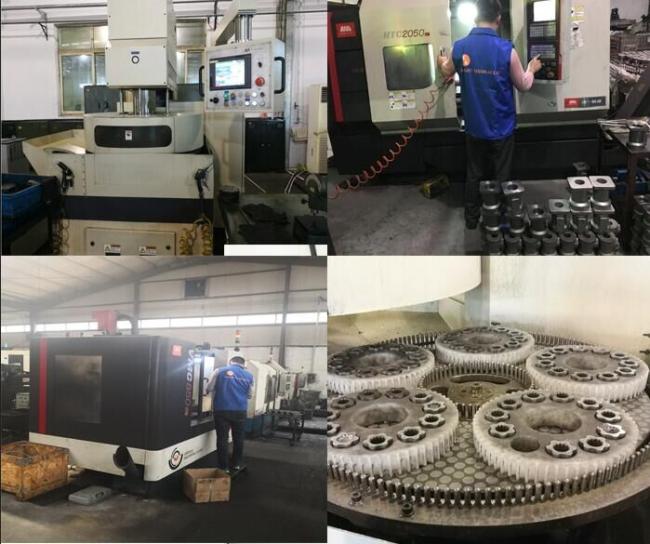

4. Workshop
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
