151H1016 OMH500 Orbit Hydraulic Motor Putzmeister Concrete Pump 238130001
Putzmeister Concrete Pump 238130001 151H1016 OMH500 Orbital Hydraulic Motor
OMH500 151H-1016 = Hanjiu BMH500
Shaft : Ø32mm
Key: 10*8*45
Displacement: 500cc
Oil Port: G1/2"
• Hanjiu Hydraulic BMH Motor have a good application on Concrete Pumps.
• Hanjiu Hydraulic BMH Motor quality mtach than OMH, M+S MH Motor.
FEATURES
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High pressure oil seals
• Low speed, high torque motors
• Roller vane type drive system – offers high volumetric efficiency and long life.
| Concrete Pump Auger Motor | |
| BMH / MH / OMH | 160cc |
| BMH / MH / OMH | 200cc |
| BMH / MH / OMH | 250cc |
| BMH / MH / OMH | 315cc |
| BMH / MH / OMH | 400cc |
| BMH / MH / OMH | 500cc |
| BMH / MH / OMH | 750cc |
Details
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
BMH Motor Application
KCP Concrete Pump
Liebherr Concrete Pump
XCMG Concrete Pump
Vitale-Robinson Concrete Pump
CIFA Concrete Pump
Junjin Concrete Pump
Putzmeister Concrete Pump
Schwing Concrete Pump
Latrobe Concrete Pump

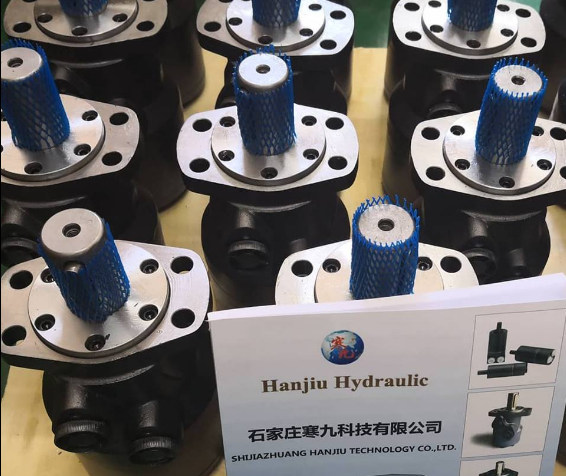

Hanjiu BMH Motors

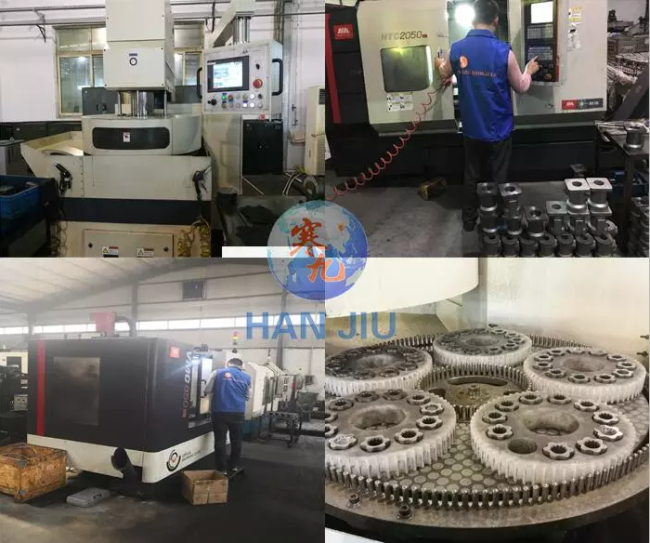

Hanjiu Workshop
Hanjiu Exhibition
High quality products,Offer the lowest price,Protect customers profit and Offer the best after service are our principle.
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
We are looking for good long cooperation in the hydraulic field,very hope we can become good long partner.
Hope I can get your chance to have a good long cooperation.
