Low speed high torque motor for forklift trucks, turf care machinery, aerial lifts, skid steer loaders and trenchers

Quickly item review

Spool valve design intended for those applications requiring high torque in a compact size, such as mobile, industrial, and agricultural applications

Brand :HANJIU

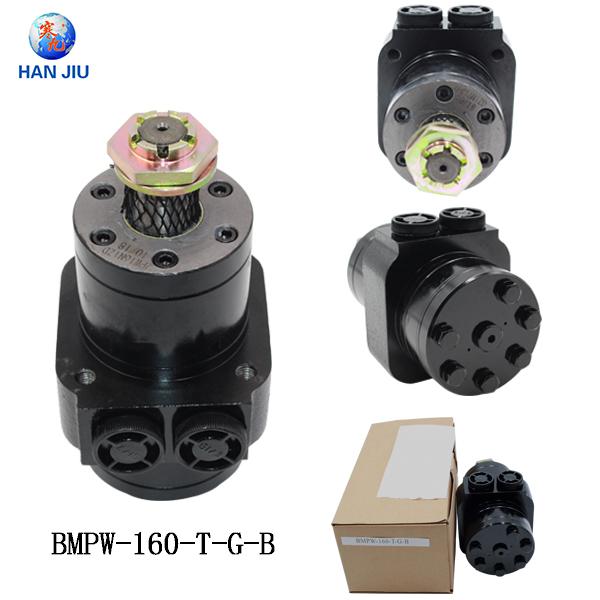

·Model :BMPW-160-T-G-B

·Displacement 160 ml / rev.

·Motor Type Gerotor

·Rotation Reversible

·Pressure:

2320 PSI cont.

2540 PSI int.

·Torque:

1106 in-lbs. cont.

1204 in-lbs. int.

·Speed:

1185 RPM cont.

1271 RPM int.

·Flow:

16 GPM cont.

20 GPM int.

·Mount Four-bolt wheel

·

Orbital motors

Hanjiu hydromotors are compatible with , Eaton Char-lynn, Parker, M+S

HANJIU offer a wide range of low-speed high torque hydraulic motors designed for moderate to heavy load requirements. With the many variants available, it is always possible to find the optimum orbital motor solution for your specific application needs

Orbital motors vary in size (rated displacement) from 8 cc/rev (0.5 cu-in/rev3) to 1000 cc/rev (61 cu-in/rev) per revolution. Speeds range from a top speed of approximately 2500 rpm for the smallest type and up to approximately 100 rpm for the largest type.

Maximum operating torques vary from 13 Nm (115 lbf-in) to 2700 Nm (24000 lbf-in) (peak) and maximum outputs are from 2 kW (2.7 hp) to 70 kW (95hp).

• High efficiency.
• Smooth running over entire speed range.
• Constant operating torque.
• High starting torque.
• High return pressure without the use of a drain line (high pressure shaft seal).
• Long life under extreme operating conditions.
• Robust and compact design.
• High radial and axial bearing capacity.
• For applications in both open and closed loop hydraulic systems.
• Corrosion resistant parts.
• Suitable for a wide variety of hydraulic fluids.

Mini motors

HANJIU mini motors are ideal in industrial applications and for work functions in the mobile sector, e.g. mobile conveyors in harvesting machines.

• Spool valve integrated with output shaft.
• Gearwheel set with fixed rim
• Suitable for long periods of operation at moderate pressure and short periods of operation at high pressure.

Medium Sized Motors

HANJIU medium sized motors are light and compact and therefore easy to install in equipment such as forklift trucks, turf care machinery, aerial lifts, skid steer loaders and trenchers.

• Spool valve integrated with output shaft, except for OMEW which has a disc valve.
• OMP/DH has a fixed gear rim and is ideal for long periods of operation at moderate pressure and short periods of operation at high pressure.
• OMR/DS/OMH has a gear rim with rollers and is suitable for long periods of operation at high pressure.
• OMP and OMR are available as wheel motors with a recessed mounting flange.
• High pressure shaft seals are available on OMP and OMP.
• For use in corrosive environments, OMP and OMR are available with exposed parts made of stainless steel.
• Integrated negative holding brake option available on OMR.

Large Frame Motors

For particularly rough operating conditions, HANJIU offers a range of large orbital motors.

• Output shaft with tapered roller bearings gives high static and dynamic bearing capacity.
• Gear rim with rollers, separate valve drive and disc valve.
• High volumetric and mechanical efficiency.
• Long operating life at high pressures.
• Short and ultra-short (without bearings and output shaft) versions possible.
• Integrated flushing valve in OMT.
• Speed signals.
• OMS available as a slewing motor.
• OMT available with integrated negative holding brake.

Please send your request list, do not hesitate to ask a quote
