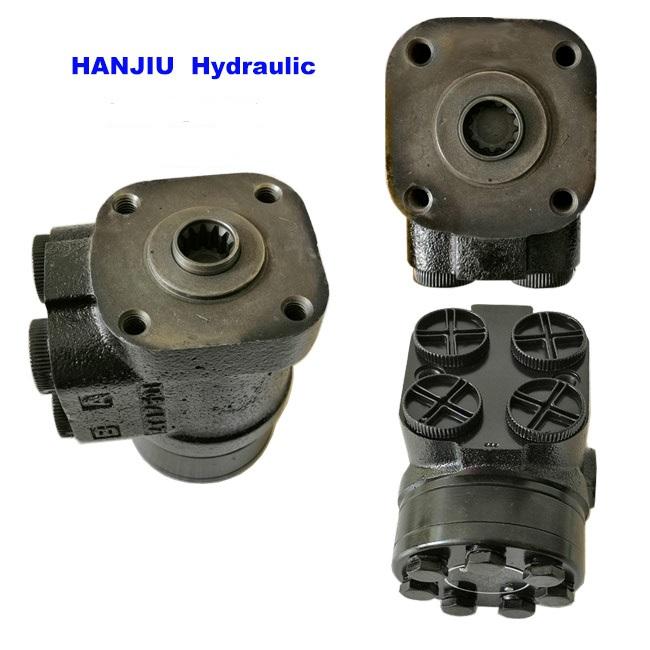

Hydraulic Steering Power Units CAT 1198748 1U2104 Hydraulic Orbital Steering Valve
Hydraulic Steering Power Units CAT 1198748 1U2104
Hydraulic Orbital Steering Valve
This hydraulic orbital steering pump made by high quality in China, same as European type
replace for CAT UAR 1U2104 120G 130G 920 930 926 950B Loaders wheel loaders motor graders
Quick details:
- we produce hydraulic steering valves for Forklifts, Loaders, Backholes, Tractors, excavators
- 9 different types available from BZZ, 101, 101S, 102, 102S, 103S, 109, 109S, 060 series
- different types with same specifications with most OEM parts, also OSPB, OSPC, HKU, HKUS
- meet all application on Heavy duty equipment, Ag machinery, Industrial
Features:
Multi types, sizes, key or splind shafts available
Suitable for nearly all kinds of ,Massey Ferguson, Fiat, MTZ, , tractors.
Different oil port,different types of shaft, different flange can choose.
Many kinds of displacement, can suitable for any hydra ulic systems.
High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).
100% replace the OEM parts,70%-80% save cost.
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101*-***-**-* | ||||||||||
| Function code | 1,2,3 | 1,3 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 | 1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON | 240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON | (5140383) / 5143319/ 2WD HKUS100/ON OSPC100/ON | 100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
