2 Bank Hydraulic Solenoid Control Valve 13gpm 24 Volt Dc Manual Directional Control Valves Control Solenoid Valve

Price Negotiable

Price: Negotiable

MOQ: 30 Sets

Delivery Time: 10-15 work days

Brand: HANJIU

Product Description

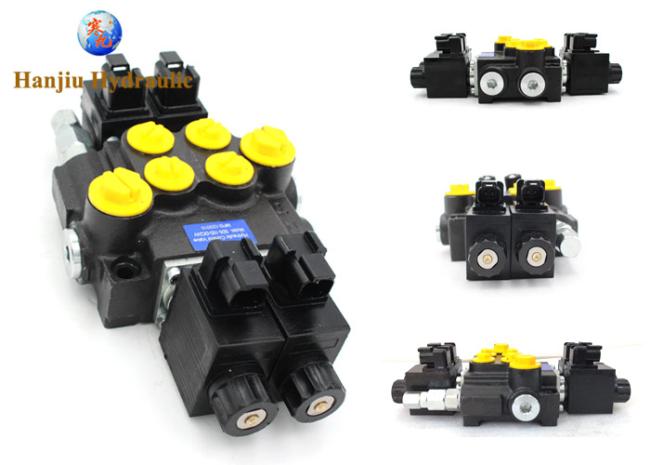

2 Spool Hydraulic Solenoid Directional Control Valve 13gpm 24VDC, monoblock

Hydraulic Monoblock Solenoid Control Valve, 3 Spool, 13 GPM, 24V DC

Two Spool Options Available:

A Spool (Controls Double Acting Cylinders)

All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
A and B ports are closed to Tank in neutral position

D Spool (Motor Control)

All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylinders
A and B ports are open to Tank in neutral position

Benefits:

Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Used for open center systems (Pump to Tank Flow)
Capable of closed center or Power Beyond (conversion plug required)
Adjustable Relief Valve Range: 1500 to 3625 PSI
Manual Override

Features:

24 Volt DC Solenoids
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 13 GPM (50 l/min)
A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #10 SAE O-Ring (7/8”-14) Thread

Specifications:

parameter	value
Number of Work Sections	from 1 to 3
Max working pressure	315 bar
Operating pressure	210 bar
Rated flow	50 l / min
Working temperature	from -30 ° С to + 50 ° С
Fluid viscosity	from 20 to 400 mm ² / s
Fluid temperature	from -20 ° С to + 70 ° С
Filtration	Grade 9 NAS1638
Supply Voltage / Power Consumption	12VDC * / 36W and 24VDC * / 29W
Switching frequency ^max	15,000 times per hour
Duty cycle	one hundred%

Port threads

BSP Thread		Metric thread		US standard UNF thread		US standard NTP thread
code	Thread size	code	Thread size	code	Thread size	code	Thread size
G04	G1/4	M16	M16X1.5	U10	5/8-12UNF	N06	NPT3/8
G06	G3/8	M18	M18X1.5	U12	3/4-16UNF	N08	NPT1/2
G08	G1/2	M20	M20X1.5	U14	7/8-14UNF	N12	NPT3/4
G12	G3/4	M22	M22X1.5	U16	1-12UNF
