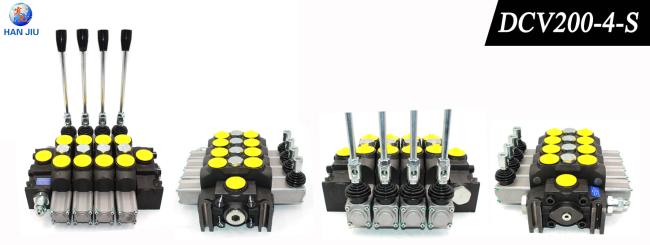

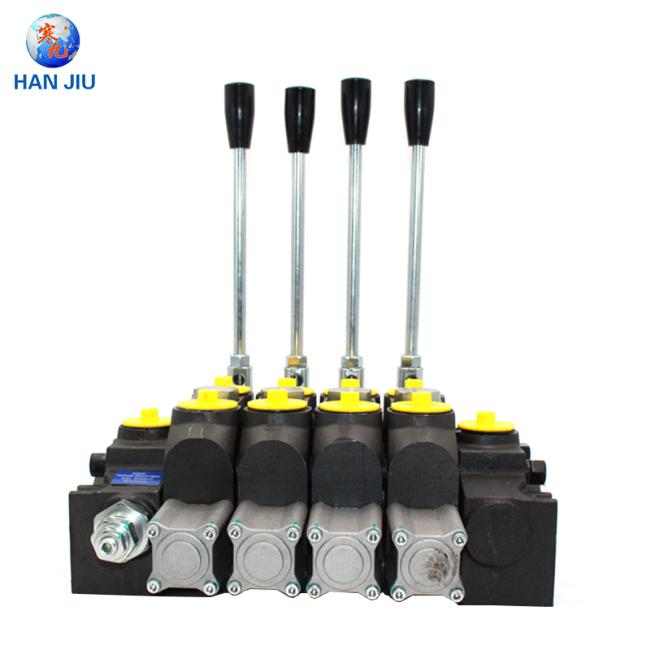

Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed center hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section.
Available with parallel or series circuit.
Optional carry-over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.
Diameter 25 mm (0,98 in.) interchangeable spools.
- Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
-
Spool function:A, O, Y, P, etc.
-
Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
-
Circuit type:parallel,series-parallel
-
C port(oil bridge) as hydraulic source for other parts
-
Structure:Sectional
|
Norminal Flow
|
200 L/min
|
|
Max Flow
|
200L/min
|
|
Max Pressure
|
350bar
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| ambient temperature range | -40°-80°C |
| Structure | sectional: 1-12sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
