Bobcat Hydraulic Drive Motor For Brush Cutters & Mowers Eaton 104-3155-006 2 Bolt Flange
Bobcat hydraulic drive motor for Brush Cutters & Mowers, Eaton 104-3155-006, 194.8 cm³/r , 385 rpm, 2-Bolt Flange
104-3155-006=BMK2-200
Specifications:
Series: 2000 - Standard
Displacement: 11.89 in³/r
Maximum rpm: 385 rpm

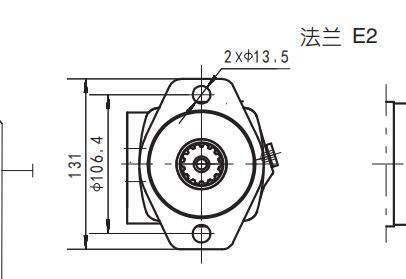

Mounting type: 2 Bolt Flange - 3.25 in Pilot - SAE A
Motor port size: 7/8-14 UNF-2B
Maximum flow rate: 20 gpm
Drain connection size: .4375-20 Unf-2b O-ring Port Size
This motor is one special type motor to replace Eaton 2000 (2K) series.
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
| 104-1146-006 | Char-Lynn | Motors | M02080AC02AB0100010000000AAAAF |
| 104-1147-006 | Char-Lynn | Motors | M02096AC02AB0100010000000AAAAF |
| 104-1148-006 | Char-Lynn | Motors | M02119AC02AB0100010000000AAAAF |
| 104-1149-006 | Char-Lynn | Motors | M02149AC02AB0100010000000AAAAF |
| 104-1150-006 | Char-Lynn | Motors | M02187AC02AB0100010000000AAAAF |
| 104-1151-006 | Char-Lynn | Motors | M02240AC02AB0100010000000AAAAF |
| 104-1182-006 | Char-Lynn | Motors | M02187AC03AB0100010000000AAAAF |
| 104-1192-006 | Char-Lynn | Motors | M02119AF05AF0100010000000AAAAF |
| 104-1193-006 | Char-Lynn | Motors | M02049AF05AA0100010000000AAAAF |
| 104-1194-006 | Char-Lynn | Motors | M02062AF05AA0100010000000AAAAF |
| 104-1195-006 | Char-Lynn | Motors | M02080AF05AA0100010000000AAAAF |
| 104-1196-006 | Char-Lynn | Motors | M02096AF05AA0100010000000AAAAF |
| 104-1197-006 | Char-Lynn | Motors | M02119AF05AA0100010000000AAAAF |
| 104-1198-006 | Char-Lynn | Motors | M02149AF05AA0100010000000AAAAF |
| 104-1199-006 | Char-Lynn | Motors | M02187AF05AA0100010000000AAAAF |
| 104-1200-006 | Char-Lynn | Motors | M02049AF02AA0100010000000AAAAF |
| 104-1201-006 | Char-Lynn | Motors | M02062AF02AA0100010000000AAAAF |
| 104-1202-006 | Char-Lynn | Motors | M02080AF02AA0100010000000AAAAF |
| 104-1203-006 | Char-Lynn | Motors | M02096AF02AA0100010000000AAAAF |
| 104-1204-006 | Char-Lynn | Motors | M02119AF02AA0100010000000AAAAF |
| 104-1205-006 | Char-Lynn | Motors | M02149AF02AA0100010000000AAAAF |
| 104-1206-006 | Char-Lynn | Motors | M02187AF02AA0100010000000AAAAF |
| 104-1207-006 | Char-Lynn | Motors | M02240AF02AA0100010000000AAAAF |
| 104-1208-006 | Char-Lynn | Motors | M02049AF04AA0100010000000AAAAF |
| 104-1209-006 | Char-Lynn | Motors | M02062AF04AA0100010000000AAAAF |
| 104-1210-006 | Char-Lynn | Motors | M02080AF04AA0100010000000AAAAF |
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
Example application on Mini Excavator Brush Cutter
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
