Mowing Machines High Rpm Hydraulic Motor Char Lynn 113-1074-006 Hydraulic Geroler Disc Valve Motor Hydraulic Solution

Mowing Wheel Drive Motor Char Lynn 113-1074-006 Hydraulic Geroler Disc Valve Motor hydraulic solution

Product details

Displacement - 30 cu in

Mounting - Wheel Motor

Shaft - 1 3/4" Tapered

Ports - 1 5/16"-12UNF

Max Speed - 304 rpm (cont) / 455 rpm (interm)

Flow - 40 gpm (cont) / 60 gpm (interm)

Torque - 12800 lb-in (cont) / 16640 lb-in (interm)

Pressure - 2900 psi (cont) / 4000 psi (interm) / 4350 psi (peak)

The connection flange of the wheel motor is close to the middle position of the motor, so that the front half of the motor can be extended into the hub. In driving applications, the load acting point can be near the support point of the motor bearing, which can effectively extend the bearing life. Wheel motor mounting flanges are used in many applications, providing design flexibility.


BMK6 series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Characteristic features:

• Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up,provide smooth and reliable operation and high efficiency.

• The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The can offer capacities of high pressure and high torque in the wide of applications.

• Advanced design in disc distribution flow,which can automatically compensate in  operating with high volume efficiency and long life, provide smooth and reliable operation.


Applications:
BMK6 Wheel motor is a motor used to drive the vehicle.The general form is that the connection flange is located in the middle of the motor
wheel motor can be applied to situations with less load and interval operation of all wheell vehicle, such as wheel loader, wheel crane, tractor, etc.

Main specification

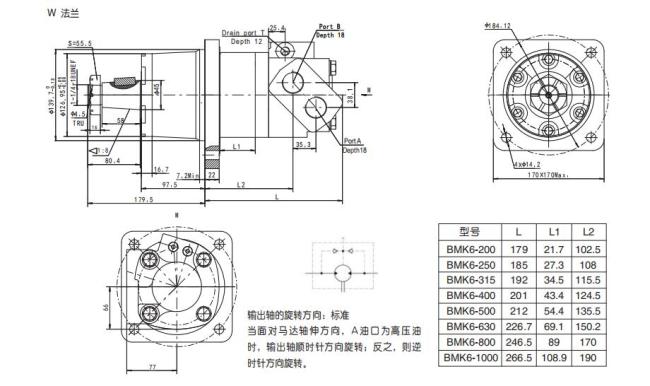

FLANGE TYPE

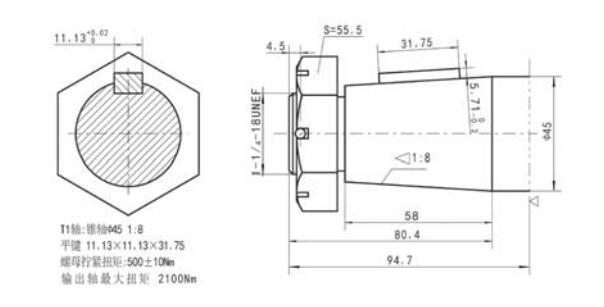

SHAFT

We have more types match charlynn 2000series,6000series


APPLICATIONS:

• Mobile equipment
• Snow Removal, mowing
• Spayer, trencher
• Wood products
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining

Hanjiu is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.


we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
