Fluid Power Solution Hydrulic Motor Orbital Motors Original Quality Or OEM Replacement
Fluid Power Solution Hydrulic Motor Orbital Motors Original Quality or OEM Replacement

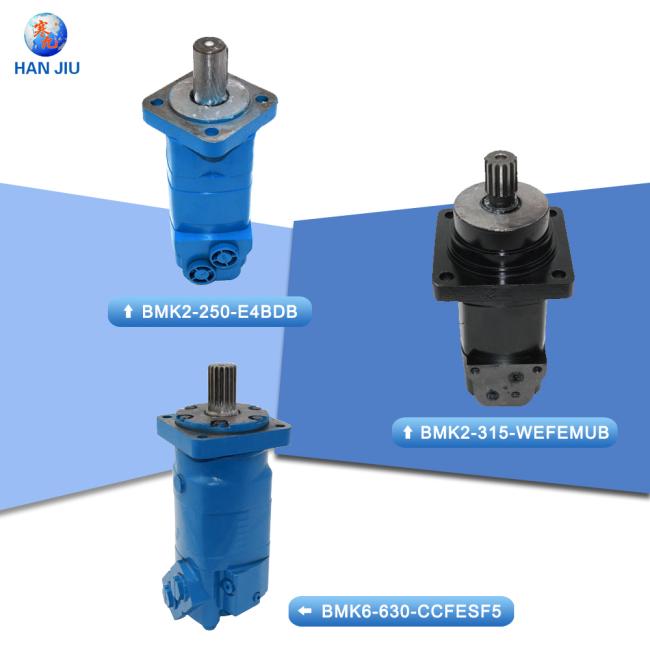

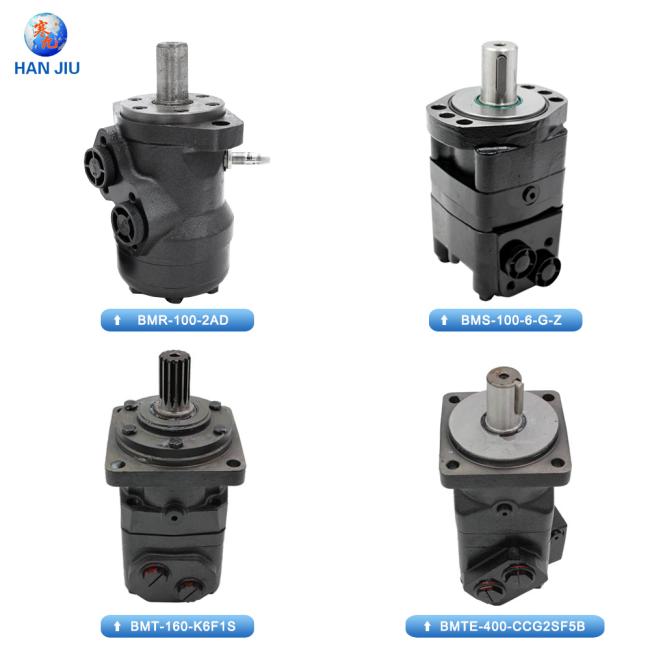

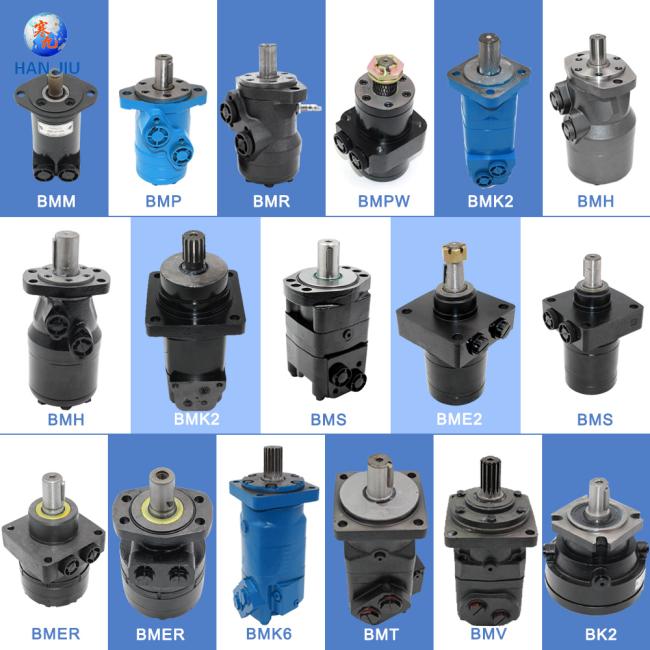

Hydraulic Motors
Hanjiu has a complete selection of hydraulic motors to fill your requirements. Low speed high torque motors from Hanjiu Technology, 2 bolt, 4 bolt and wheel drive versions are standard. Keyed or spline shafts are standard as are SAE or NPT ports and displacements from .78cc to 524cc. directly interchangeable with the leading industry brands.
Hanjiu Manufacturing offers original quality or OEM replacement motor for Eaton, Parker, Danfoss, White, Ross, TRW, Brivini
Hanjiu motors with the following Features and benefits include:
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Superior side load capacity
- Smooth, extra low speed operation
- High pressure shaft seal as standard
- Innovative design eliminates the need for a drain
- Roller vanes and sealed commutator maintain high efficiency
- and provide smooth low speed performance.
Low speed high torque motor :
Low speed high torque hydraulic motor are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power. Hydraulic motors provide the force and supply the motion to move an external load.
Take BMER are example:
| type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 400 |
BMER 475 |
BMER 540 |
BMER 650 |
BMER 750 |
|
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 185 | 160 | 140 | 115 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 220 | 195 | 170 | 138 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1010 | 1085 | 980 | 1015 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1180 | 1240 | 1250 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1360 | 1260 | 1380 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 15.5 | 14.5 | 11.5 | 10 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 18 | 16.5 | 15 | 12 | 10 | |
| Max. pressur drop e (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20. 5 | 20.5 | 19 | 17.5 | 14 | 12 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 22.5 | 19 | 17.5 | 15.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 25 | 20.5 | 20.5 | 17.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | 90 | 90 |
|
Hydraulic Motors
If you don’t see what you are looking for on this page or need assistance with choosing a hydraulic motor for your application please contact us Here! We will be happy to help assist you with sizing and application of a hydraulic motor for your application.
