BMM 20 Cc / R Cylindrical 16mm Orbit Hydraulic Motor For Fruit Harvester Parts
Motor Orbital BMM 20 cc / r Cylindrical 16mm for Fruit Harvester Parts Manufacturer, Hydraulic system parts

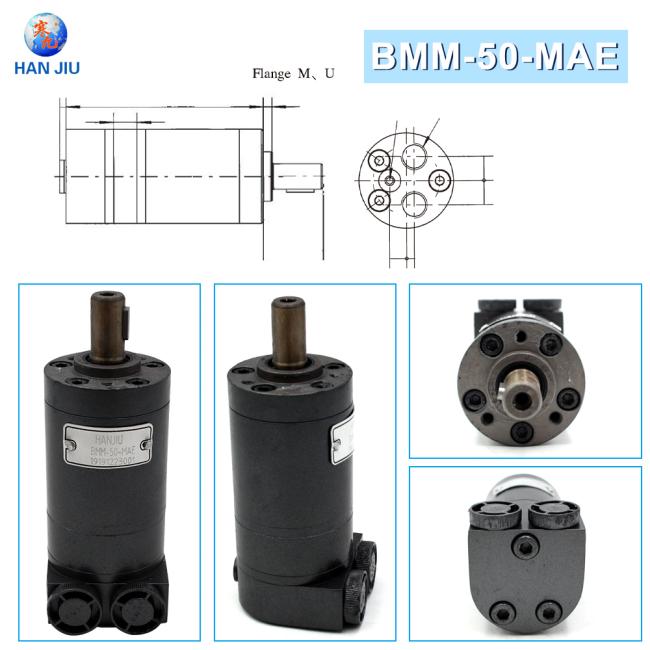

BMM-50-MAE, This motor can be used for new designs of transmission and rotary filling systems
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
Introduce "mandatory" products for each distributor of fruit farming equipment!
This motor can be used for new designs of transmission and rotary filling systems

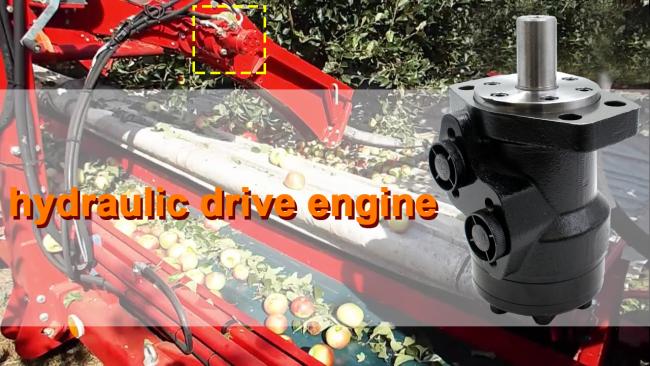

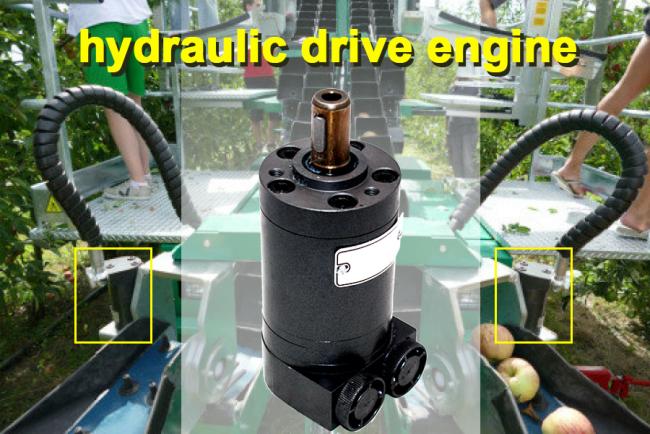

The labor-saving harvester needs this labor-saving hydraulic motor with high speed and low torque. The speed of the motor can be adjusted by the hydraulic valve to control the flow according to the working occasion, thereby adjusting the working efficiency. Fully automatic steering, independent steering function, the living room is completed with automatic transmission, used for the movement of all boxes
The fruit can be put into the container at a uniform rotation speed to avoid any type of stroke and scratch between the fruits.
Fruit is transmitted at a very uniform speed
Its design lifts the fruit, downloads and places it on the top of the pallet through a rotating system, without causing any damage.
This motor rotates 360 degrees, can be left or right, allowing the front and back walls to rotate 180°, which helps to enter the fruit in the queue
Spare parts for FRUIT HARVESTING SELF-PROPELLED PLATFORM
