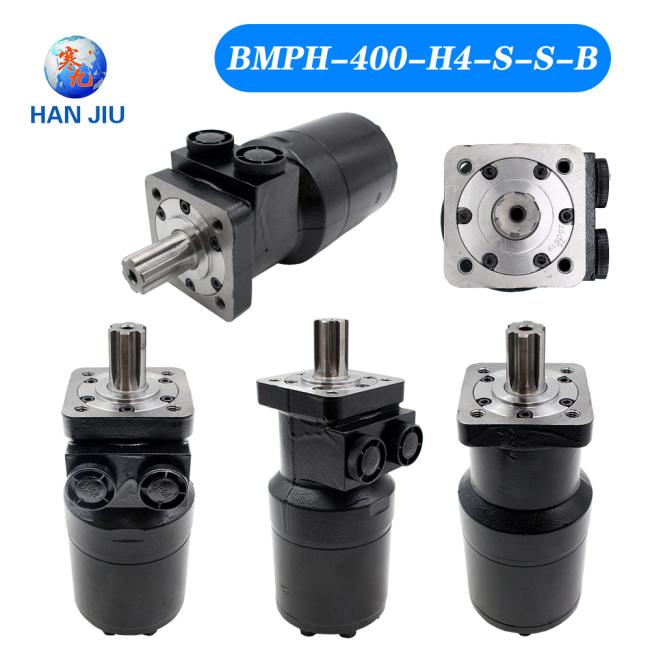

MS Hydraulic Motors HPQ400 High Speed Low Torque Motor MLHPQ400 Omh
Price:
Negotiable
MOQ:
50 Pieces
Delivery Time:
Negotiable
Brand:
HANJIU
Product Description
MS Hydraulic motor HPQ400 high speed low torque motor MLHPQ hydraulic spool valve gerotor
Product details:
| type | BMPH |
| displacement4 | 400cc |
| flange: | 4-3/8-16 Square-flange , pilot Ø 44.4 2.8 |
| shaft | Shaft Ø25.4, spline key |
| oil port | 7/8-14 O-ring |
Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.

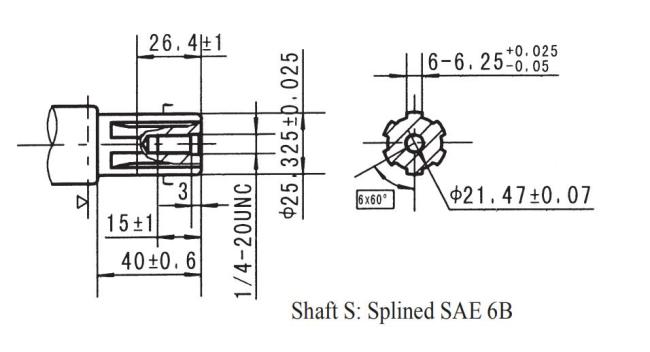

Featuring a 1"diameter SEA 6B spline shaft with dual rotation. For light and medium duty applications. Good replacement for Char-Lynn “H” series.
Specification:
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
We are professional manufacturer produce Hydraulic Orbital Motors, we have the most complete range of hydraulic motors.
interchangable in Char Lynn and M+S and Brevini motor series,we will supply our expert knowledge of hydraulic systems
help you to solve hydraulic problems.
Please contact me for more details.
Tracy whatsapp/wechat :+8618132660311
Shijiazhuang Hanjiu Technology Co.,Ltd
