195 Cc Wheel Mounting 1 1/4'' Tappered Orbit Hydraulic Motor Parker TF0195LS080XXXX Alternative
195 cc wheel mounting 1 1/4'' tappered Hydraulic Orbit Motor, Parker TF0195LS080XXXX Alternative
Hanjiu BMER series is an alternative to Parker FG series
This motor with same mounting and performance as Parker TF0195LS080XXXX
No matter what TF series motor model you need, what size, what installation method, I can provide
And has a price performance leading position
Specifications
Series: BMER/TF
Rotation: Unti-clockwise
Shaft: 1 1/4" Splined
Mounting: wheel flange with frongt brake
Type: High Pressure, without drain
Speed: 330/425RPM
Torque: 530/600/750NM
Port: SAE O-ring
Shaft: 1 1/4'' Tapered
BMER is a Medium Duty Motor same as Parker TF. TG. TH Series

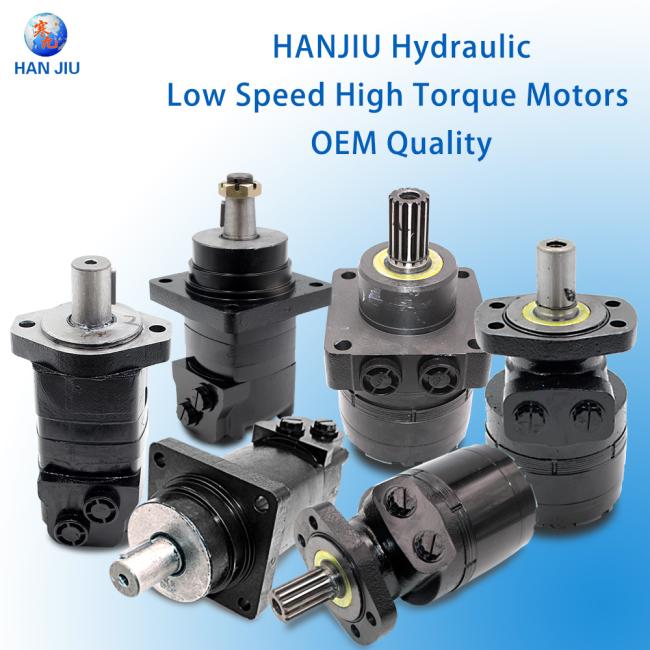

With increased power and durability, the BMER ( TF, TG, TH Series ) low speed high torque (LSHT) hydraulic motor is available in wheel mounts, or 4 bolt, 6 bolt flange. Torques to 12,600 lb-in and displacements to 58.5 cu in. Shaft sizes to 1.375-inch nominal.
Main Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial forces.
The can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in high speed distribution flow, which can automatically compensate in
operating with high volume efficiency and long life , provide smooth and reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than
shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high
volume efficiencies and can run very smoothly at low speed, gear box not required.

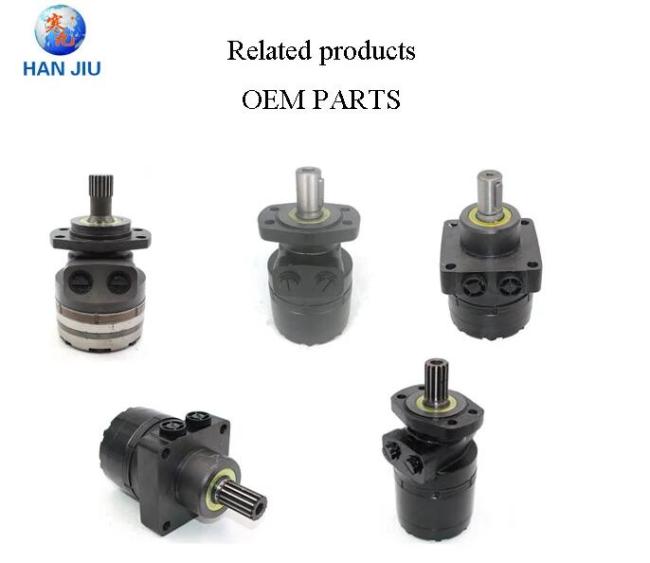

Related Products:
