agricultural machines gerotor hydraulic motor straight key shaft 4bolts flange orbital gear motor
agricultural machines hydraulic gerolor motor straight key shaft 4bolts flange orbital gear motor
production details
- Displacement: 400c

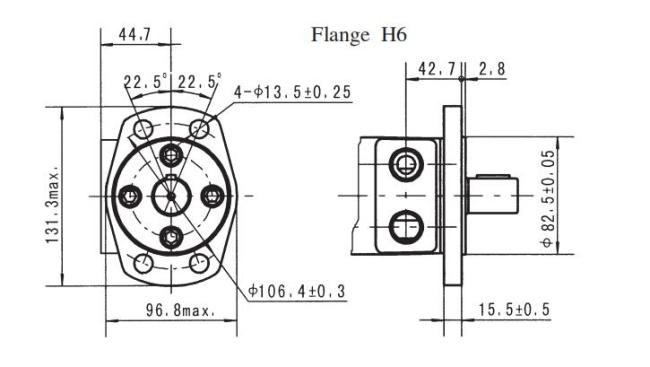

- Flange H6 Ø82106.4mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T)
SHAFT SIZS
| K | Shaft Ø25.4, woodruff key |
| Ø25.4×6.35 | |
| S | Shaft Ø25.4 , splined tooth SEA 6B |
| A | Shaft Ø25 , parallel key 8×7×32 |
| R | Shaft Ø25.4, parallel key |
| 6.35×6.35×31.75 | |
| H | Shaft Ø25.4 , pin hole Ø10.3 |
| H1 | Shaft Ø25.4 , pin hole Ø8 |
| D | Shaft Ø22.22, parallel key |
| 6.35×6.35×25.4 | |
| I | Shaft Ø22.22, splined tooth |
| 13-DP16/32 | |
| T2 | Cone shaft Ø25.4 , woodruff key |
| Ø25.4×6.35 | |
| P | Shaft Ø25 , parallel key 8×7×28 |
| J | Shaft Ø25 , parallel key 7×7×32 |
HIGH TORQUE - LOW SPEED ORBITAL MOTORS.
With high power from compect hydraulic motors, these are motor of choice for applications including: Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers
We offer thousands of motor configurations for you to choose from, plus the application support to help you choose the right one.
The displacements range from 8cc to 940cc per revolution. Our orbital motors have set the market standard since the beginning.
Known for their solid reliability, extreme durability and high efficiency under any condition, they deliver an optimum performance – always.
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
