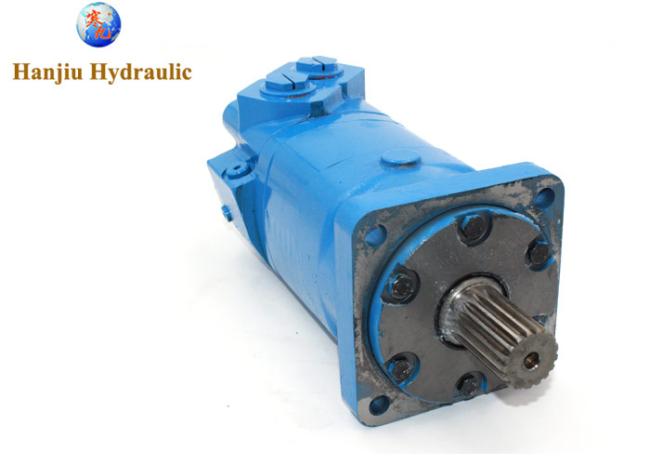

Char Lynn 6000 Series Hydraulic Geroler Motor 38 Cubic Inch Displacement 4 Bolt SAEC Mounting Flange SAE CC Splined
Char-Lynn 6000 Series Hydraulic Geroler Motor, 38 cubic inch displacement, 4 bolt SAEC mounting flange, SAE CC Splined
Hanjiu BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT
Model number: BMK6-630
Replace Char-lynn motor 6000 Series
Displacement: 38.0
Flange: 4x13.5 Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Shaft: 17-DP12/24
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Blue
Main Specification
| Type |
|
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) |
cont. |
765 |
610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M |
cont. |
565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
More Eaton code available
| 104-1406 |
| 104-1409 |
| 104-1415 |
| 104-1418 |
| 104-1419 |
| 104-1420 |
| 104-1422 |
| 104-1429 |
| 104-1430 |
| 104-1432 |
| 104-1434 |
| 104-1435 |
| 104-1438 |
| 112-1068 |
| 119-1030 |
| 119-1031 |
